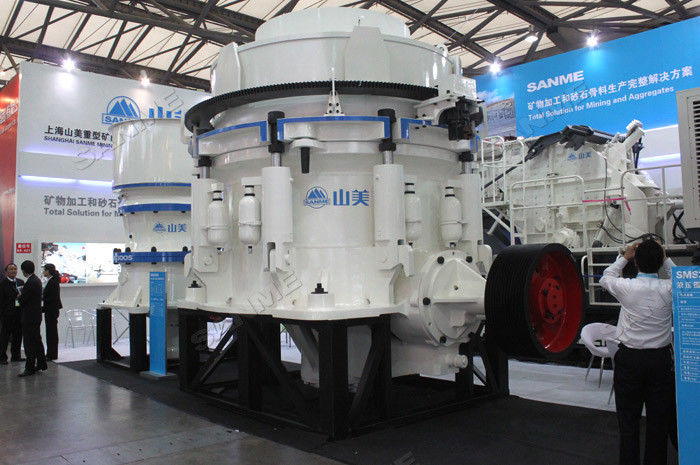

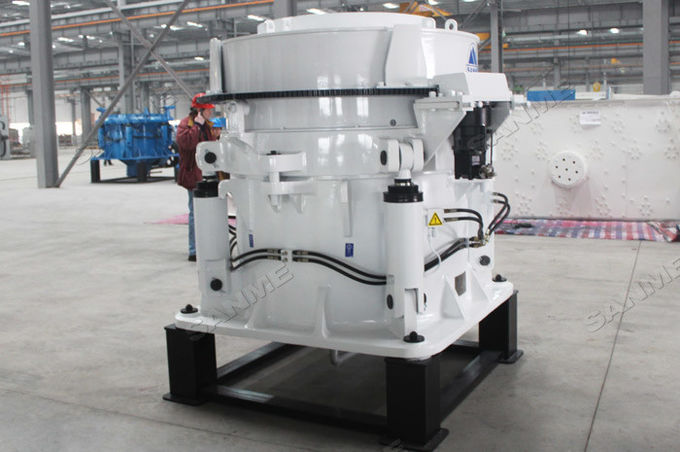

Mining Granite Crushing Machine Hydraulic Stone Cone Crusher

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	SMH120,SMH250,SMH350,SMH550

Detail Information
Application:	Mining, Stone ,ore And Construction Etc.	Type:	Cone Crusher
Dimension(LWH):	According To Different Models	Product Name:	Best Quality Aggregate Crushing Cone Crusher
Keyword:	Stone Cone Crusher	Spare Parts Supply:	Lifelong Time
High Light:	160mm Feeding Granite Crushing Machine,90kw Aggregate Stone Cone Crusher,120t/H Granite Stone Cone Crusher

Product Description

High Capacity Granite Crushing Line

The high Capacity Granite Crushing Line is suitable for crushing all kinds of ores and rocks with medium or above hardness. It has the characteristics of reliable structure, high production efficiency, and convenient adjustment. It is the most ideal equipment that suitable for crushing hard, medium hardness above all kinds of ores and rocks in large scale factories, which widely used in metallurgy, construction, hydropower, transportation, chemical industry, building materials industry.

FEATURES OF SMH SERIES CONE CRUSHERStrong crushing ability, high efficiency productivity, high capacity.

Hydraulic system is reliable, provide safe and effective overload protection.

Types of crushing cavity are for wide range of product size requirement.

Reasonable structure, advanced crushing principle and technical data, reliable work and low cost.

Use hydraulic adjustment and hydraulic clean cavity setting, greatly increase automation.

Technical Data of SMH Series Standard Head Hydraulic Cone Crusher:

Model	Max Feeding Size(mm)	Discharge Range(mm)	Moter Power(kw)	Capacity(t/h) — open circuit,closed discharge(mm)
Model	Max Feeding Size(mm)	Discharge Range(mm)	Moter Power(kw)	9	13	16	19	22	26	32	38	51	63	76	89
SMH120C	160	22~32	75-90					120	130	150
SMH120M	130	13~26	75-90		70	85	100	120	130
SMH120F	102	9~22	75-90	58	70	85	90	110
SMH180C	180	22~32	132-160					185	195	215
SMH180M	140	13~32	132-160		90	115	135	160	180	200
SMH180F	60	9~22	132-160	60	80	100	120	140
SMH250EC	260	26~51	160-200						250	290	340	395
SMH250C	220	19~51	160-200				182	209	236	279	334	365
SMH250M	150	16~38	160-200			140	165	185	220	275	330
SMH250F	115	13~31	160-200		115	133	156	176	192	226
SMH350EC	315	38~63	250-280								555	649	766
SMH350C	230	26~63	250-280						366	430	468	629	657
SMH350M	205	22~52	250-280					296	343	387	427	479
SMH350F	180	16~38	250-280			212	239	270	320	355	374
SMH550EC	450	38~89	355-400								920	1179	1380	1475	1566
SMH550C	350	31~76	355-400							800	850	1100	1288	1398
SMH550M	320	25~63	355-400						612	735	815	980	1137
SMH550F	268	19~52	355-400				392	453	535	620	725	867

Technical Date of SMH Series Short Head Hydraulic Cone Crusher:

Model	Max Feeding Size(mm)	Discharge Range(mm)	Moter Power(kw)	Capacity(t/h) — open circuit,closed discharge(mm)
Model	Max Feeding Size(mm)	Discharge Range(mm)	Moter Power(kw)	3	5	6	9	13	16	19	22	26	32	38
SMH120DC	70	6-19	75-90			62	82	102	123	138
SMH120DM	51	5-16	75-90		45	58	78	99	116
SMH120DF	35	3-13	75-90	30	45	58	78	95
SMH180DC	70	6-9	75-90			72	90	108	131	158
SMH180DM	51	5-16	75-90		68	76	95	118	145
SMH180DF	35	3-13	75-90		70	82	95	120
SMH250DC	89	9-22	160-220				126	168	196	215	252
SMH250DM	70	6-16	160-220			88	117	156	172
SMH250DF	54	5-16	160-220		63	86	115	143	169
SMH350DEC	133	13-25	250-280					262	308	322	358	385
SMH350DC	133	10-25	250-280				208	262	308	322	358	385
SMH350DM	89	6-19	250-280			136	186	233	260	293
SMH350DF	70	6-13	250-280			136	186	233
SMH550DEC	203	16-25	400						516	593	656	696
SMH550DC	178	13-25	400					455	498	552	600	643
SMH550DM	133	10-19	400				355	416	472	530
SMH550DF	105	6-16	400			276	355	385	448
