Product Description

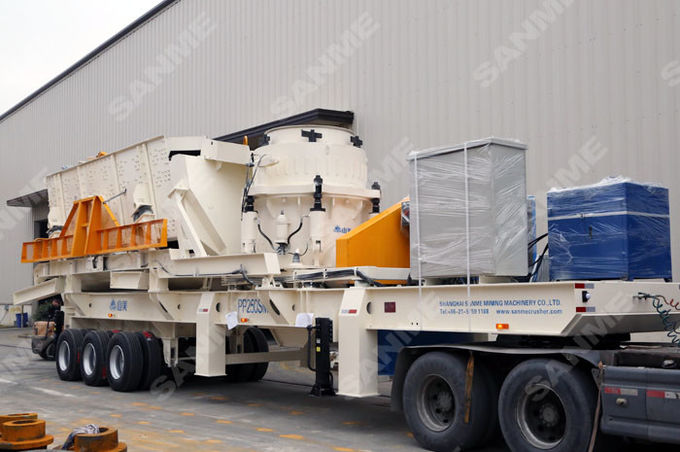

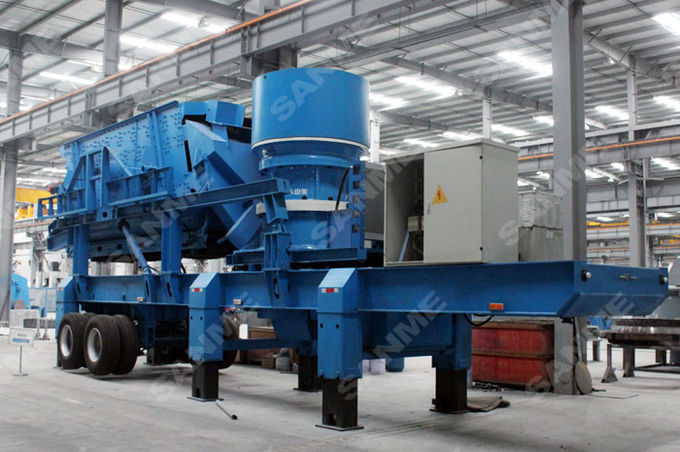

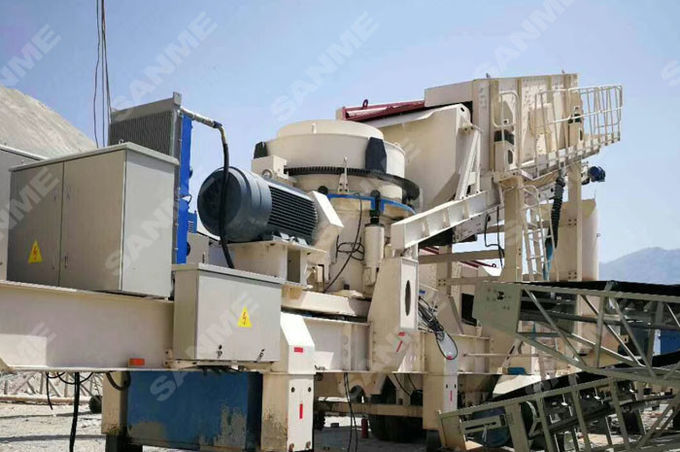

Portable stone cone crusher station is a movable crushing production line, which is generally composed of vibration feeder, cone crusher, circular vibrating screen, belt conveyor, electric motor, electric cabinet, console, tire and steel structure. The movable property is suitable for customers with multiple crushing engineering, and can save cost and reduce machine waste. The crushing station equipped with which machines need to be designed according to the customer’s special needs.
Cone crusher moving station is suitable for crushing medium hardness and above medium hardness materials, such as iron ore, copper ore, limestone, quartz, granite, pebbles, basalt, etc. The feeding range is 100-300 mm, the output is 10-60 mm, the output is 50-600 t / h, the crushing ratio is large, and the production efficiency is high.
Technical Data of PP Series Portable Cone Crusher
| Model |
PP120SMH |
PP2000SMS |
PP250SMH |
| Transport dimensions |
| Length(mm) |
11200 |
11200 |
11500 |
| Width(mm) |
2780 |
2780 |
2780 |
| Height(mm) |
3900 |
4160 |
4180 |
| Weight(kg) |
26200 |
28500 |
36100 |
| Axle weight(kg) |
17300 |
18100 |
25800 |
| King pin weight(kg) |
8900 |
10400 |
10300 |
| cone crusher |
| Model |
SMH120 |
SMS2000 |
SMH250 |
| Feed opening(mm) |
50-160 |
60-180 |
80-240 |
| Setting range(c.s.s)(mm) |
9-32 |
9-32 |
9-51 |
| BELT CONVEYOR |
| Model |
B800*6.7 |
B800*6.7 |
B1000*7.2 |
| Number of Axles |
2 |
2 |
2 |
| Model |
PP120SMH3S |
PP2000SMS2S |
PP2000SMS4S |
PP250SMH3S |
PP250SMH4S |
| Transport dimensions |
| Length(mm) |
13920 |
15000 |
15000 |
15690 |
15690 |
| Width(mm) |
2780 |
2780 |
2910 |
3280 |
3300 |
| Height(mm) |
4340 |
4350 |
4300 |
4500 |
4500 |
| Weight(kg) |
33000 |
37500 |
41000 |
53000 |
54600 |
| Axle weight(kg) |
21000 |
26000 |
25200 |
34500 |
35800 |
| King pin weight(kg) |
11000 |
11500 |
15700 |
18500 |
18800 |
| cone crusher |
| Model |
SMH120 |
SMS2000 |
SMS2000 |
SMH250 |
SMH250 |
| Feed opening(mm) |
50-160 |
60-180 |
60-180 |
80-240 |
80-240 |
| Setting range(c.s.s)(mm) |
9-32 |
9-32 |
9-32 |
9-51 |
9-51 |
| SCREEN |
| Model |
3YK1548 |
2YK1860 |
4YK1860 |
3YK2160 |
4YK2160 |
| BELT CONVEYOR |
| Model |
B800*7.4 |
B1000*8.2 |
B1000*8.2 |
B1000*8.2 |
B1000*8.2 |
| Number of Axles |
2 |
2 |
3 |
3 |
3 |
| Model |
PP100SMGS |
PP100(S)SMGS |
PP200SMGS |
PP200(S)SMGS |
PP300SMGS |
PP300(S)SMGS |
| Transport dimensions |
| Length(mm) |
13920 |
13920 |
14323 |
14323 |
13920 |
13720 |
| Width(mm) |
2780 |
2780 |
3070 |
3070 |
2780 |
2780 |
| Height(mm) |
4300 |
4430 |
4585 |
4585 |
4450 |
4645 |
| Weight(kg) |
28000 |
33400 |
43100 |
45600 |
48700 |
53900 |
| Axle weight(kg) |
19800 |
20600 |
25100 |
26400 |
31500 |
33500 |
| King pin weight(kg) |
8200 |
9600 |
18000 |
19200 |
17200 |
20400 |
| cone crusher |
| Model |
SMG100 |
SMG100S |
SMG200 |
SMG200S |
SMG300 |
SMG300S |
| Feed opening(mm) |
38-150 |
200-240 |
70-200 |
300-360 |
70-215 |
400-450 |
| Setting range(c.s.s)(mm) |
4-32 |
22-38 |
8-32 |
22-54 |
10-44 |
29-54 |
| Capacity(t/h) |
25-120 |
70-135 |
63-215 |
105-330 |
95-368 |
215-586 |
| SCREEN |
| Model |
3YK1548 |
3YK1548 |
3YK1860 |
3YK1860 |
3YK2160 |
3YK2160 |
| BELT CONVEYOR |
| Model |
B800*7.4 |
B800*7.4 |
B1000*8.2 |
B1000*8.2 |
B1000*8.2 |
B1000*8.2 |
| Number of Axles |
2 |
2 |
2 |
2 |
3 |
3 |
