PLC 810mm Feeding 250t/H Tracked Impact Crusher

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	MP-PH10, MP-PH14

Detail Information
Capacity(t/h):	250-480t/h	Application:	Construction Waste, Mine, Mining, Sand And Cement Companies.
Product Name:	Hard Stone Rock Mobile Impact Crusher	MAX FEEDING SIZE:	810mm-1360mm
Warranty Of Core Components::	1 Year	Core Components::	PLC, Gear, Motor, Engine, Bearing, Pump
High Light:	250t/H Tracked Impact Crusher,810mm Feeding Tracked Impact Crusher,PLC Tracked Impact Crusher

Product Description

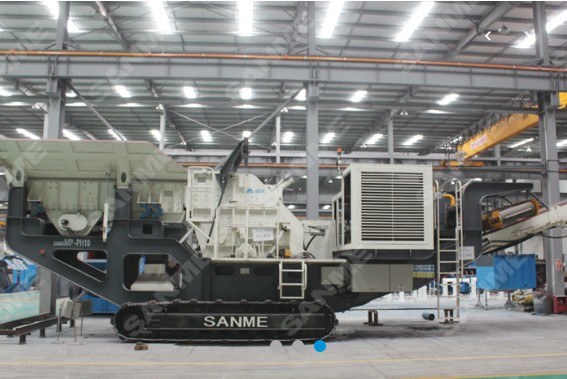

Tracked Impact Crusher Plant for Sale

mobile impact crushing station host adopts heavy super rotor, large capacity crushing chamber, heavy impact plate, alloy high wear-resistant plate hammer, hydraulic opening device and other unique design, to ensure that it has super crushing capacity and crushing effect, large feed particle size, smaller and finer discharge particle size, large crushing ratio and good product grain shape, which is widely used in low corrosive rock in gravel aggregate industry The operation of medium and fine stone crushing. It can crush low hardness ore, rock and construction waste. The broken product is cubic, with low content of needle and flake, and almost no internal crack.

Applications

1. Primary crushing, intermediate crushing and fine crushing in various medium hardness crushing processes;

2. Rock fragmentation in various mines;

3. Utilization of solid waste resources, such as house demolition, crushing of road concrete recycling;

4. Aggregate crushing in asphalt and concrete mixing station;

5. Material crushing in other industries

Technical Data of MP-PH Series Mobile Impact Crushing Plants:

Model	MP-PH 10	MP-PH 14
Impact crusher	AP-PH-A 1010	AP-PH-A 1414
Feed opening size(mm×mm)	810×1030	1025×1360
Max feed size(m3)	0.3	0.5
Max edge length in one direction(mm)	800	1000
Crushing capacity(t/h)	up to 250	up to 480
Drive	diesel-direct	diesel-direct
Driving Unit
Engine	CAT C9	CAT C18
Performance (kw)	242	470
Feed hopper
Hopper volume(m3)	4.8	8.5
Grizzly feeder with pre-screening(two-deck)
Drive	hydraulic	hydraulic
Main conveyor belt
Discharge height(mm)	3100	3500
Drive	hydraulic	hydraulic
Side conveyor belt (option)
Discharge Height(mm)	1900	3500
Drive	hydraulic	hydraulic
For transportation the head-piece can be folded
Crawler unit
Drive	hydraulic	hydraulic
Permanent magnetic separator
Magnetic separator	option	option
Dimensions and weight
Working dimensions
-length (mm)	14600	18000
-width (mm)	4500	6000
-height (mm)	4200	4800
Transport dimensions
– length (mm)	13300	17000
– width (mm)	3350	3730
– height (mm)	3776	4000
Approx weight (t)	43	70

Note: Capacity is total tons per hour passing through crusher at open circuit when bulk density of feeding is 1.6t/m³. Capacities are relative to physics character and type of feeding, feeding size and composition.
