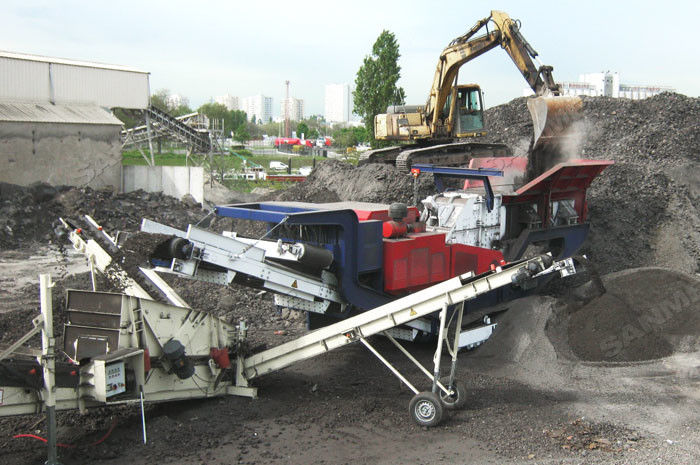

Hard Stone 1360mm Feeding 480t/H Crawler Impact Crusher

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	MP-PH10, MP-PH14

Detail Information
Type:	Mobile Crusher	Capacity(t/h):	250-480t/h
Application:	Construction Waste, Mine, Mining, Sand And Cement Companies.	Product Name:	Hard Stone Rock Mobile Impact Crusher
MAX FEEDING SIZE:	810mm-1360mm
High Light:	480t/H Crawler Impact Crusher,1360mm Feeding Crawler Impact Crusher,470kw Crawler Impact Crusher

Product Description

MP-PH Series Mobile Impactor Plant is designed by SK Group Germany, it is an all-purpose, compact and modular impact crushing plant for aggregates and recycling industries.

FEATURES AND BENEFITS OF MP-PH SERIES MOBILE IMPACT CRUSHING PLANTS

The vibration feeder is fitted with a two-deck grizzly section for an optimum pre-scaling, thus maximizing the total performance and reducing wear.

The material, which has already the required grain size, is conveyed via a bypass past the impact crusher directly to the discharge chute. Thus the efficiency of the complete plant is increased.

The MP-PH crushing plant is fitted with the field-tested impact crusher. The hydraulic controlled impact crusher guarantees a constant product quality and a high availability.

The active hydraulic permit a trouble free material flow via the movable inlet plate of the impact crusher.

The diesel-direct drive in combination with a CATERPILLAR motor allows for a maximum performance at a small amount of space.

The processing plant is easy to operate with the remote control.

Magnetic separator, lateral discharge belt and water spray system are optionally available as approved modules.

For the optimization of performance and availability the mobile processing plant is operated by an intelligent control in the background.

Technical Data of MP-PH Series Mobile Impact Crushing Plants:

Model	MP-PH 10	MP-PH 14
Impact crusher	AP-PH-A 1010	AP-PH-A 1414
Feed opening size(mm×mm)	810×1030	1025×1360
Max feed size(m3)	0.3	0.5
Max edge length in one direction(mm)	800	1000
Crushing capacity(t/h)	up to 250	up to 480
Drive	diesel-direct	diesel-direct
Driving Unit
Engine	CAT C9	CAT C18
Performance (kw)	242	470
Feed hopper
Hopper volume(m3)	4.8	8.5
Grizzly feeder with pre-screening(two-deck)
Drive	hydraulic	hydraulic
Main conveyor belt
Discharge height(mm)	3100	3500
Drive	hydraulic	hydraulic
Side conveyor belt (option)
Discharge Height(mm)	1900	3500
Drive	hydraulic	hydraulic
For transportation the head-piece can be folded
Crawler unit
Drive	hydraulic	hydraulic
Permanent magnetic separator
Magnetic separator	option	option
Dimensions and weight
Working dimensions
-length (mm)	14600	18000
-width (mm)	4500	6000
-height (mm)	4200	4800
Transport dimensions
– length (mm)	13300	17000
– width (mm)	3350	3730
– height (mm)	3776	4000
Approx weight (t)	43	70

Note: Capacity is total tons per hour passing through crusher at open circuit when bulk density of feeding is 1.6t/m³. Capacities are relative to physics character and type of feeding, feeding size and composition.
