800t/H Mining Construction Mobile Jaw Crusher

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	MP-J6, MP-J7, MP-J8, MP-J10

Detail Information
Capacity(t/h):	10-800t/h	Application:	Mining,ore,construction,quarry,stone
Warranty:	1 YEAR	MAX FEEDING SIZE:	≤950mm
Motor Type:	AC Motor	After-sales Service Provided:	Video Technical Support, Free Spare Parts, Online Support
High Light:	Construction Mobile Jaw Crusher,Mining Mobile Jaw Crusher,800t/H Mobile Jaw Crusher

Product Description

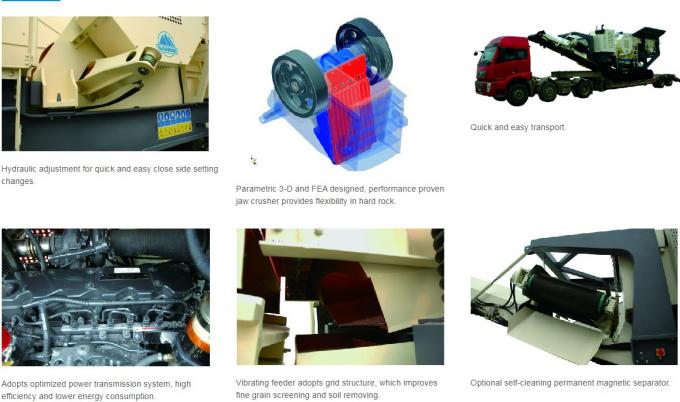

CHARACTERISTICS OF MP-J SERIES MOBILE JAW CRUSHING PLANTS

High capacity and crushing efficiency.

Heavy duty design, high reliability.

Easy transport and fast set-up.

Convenient operation and maintenance.

High mobility.

Advanced engine, less fuel consumption, reduces operation cost.

Meet strict environmental standards.

MP-J SERIES MOBILE JAW CRUSHING PLANTS PURCHASE FROM WORLD FAMOUS BRAND

Cummins or CAT Engine (Optional)

Rexroth Hydraulic Pump (Optional)

SKF Bearing (Optional)

Technical Data of MP-J Series Mobile Jaw Crushing Plants

Model	MP-J6	MP-J7	MP-J8	MP-J10
Size of Feed opening(mm×mm)	600×1060	760×1000	850×1150	1070×1400
Max Feed Size(mm)	500	630	720	950
Gap width(mm)	60-175	70-200	70-220	100-250
Capacity(t/h)	up to 280	up to 400	up to 500	up to 800
Driving Unit
Engine	Cummins Tier3	Cat C9	Cat C12	Cat C15
Motor Power (kw)	164	242	317	390
Feed Hopper
Hopper volume (m3)	6	7	8	10
Grizzly Feeder With Pre-screening
Drive	hydraulic	hydraulic	hydraulic	hydraulic
Main Conveyor Belt
Belt width (mm)	1000	1000	1200	1400
Discharge height (mm)	2900	3300	3800	4000
Drive	hydraulic	hydraulic	hydraulic	hydraulic
Side Conveyor Belt
Discharge height (mm)	2140	2400	3000	3200
Drive	hydraulic	hydraulic	hydraulic	hydraulic
For transportation the head-piece can be folded
Crawler Unit
Drive	hydraulic	hydraulic	hydraulic	hydraulic
Permanent Magnetic Separator
Magnetic separator	option	option	option	option
Dimensions and Weights
Working dimensions
-length(mm)	12600	14800	16000	16500
-width(mm)	4060	4100	4200	4300
-height(mm)	4160	4400	4400	6000
Transport dimensions
– length(mm)	12600	14600	16000	16000
– width(mm)	2760	2850	3200	3500
– height(mm)	3460	3900	3800	3900
Weight(t) Approximately	39	48	65	115

Note:Capacity is the total production tons of open circuit when the material bulk density to be crushed is 1.6t/m3. Production capacity will be affected by physics character of material and feeding method, feeding size and material composition, and so on.
