800T/H Mineral Steel Slag Mining Crushing Machine

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	PP128HC,PP139HC,PP239HC,PP255HC,PP359HC,PP459HC

Detail Information
Max Feeding Size:	400-1520mm	Applicable Industries:	Mineral Crushing, Ore Processing
Online Service Time:	24 Hours Online For Your Consultation	Capacity:	40-450t/h
After Warranty Service:	Video Technical Support	Warranty:	1 Year
High Light:	Railway Ballast Mining Crushing Machine,Foundation Backfill Mining Crushing Machine,800T/H Steel Slag Production Line

Product Description

30-800T/H Steel Slag Production Line

DESIGN OUTPUT

According to customer needs

MATERIAL

Steel slag

APPLICATION

After being processed, steel slag can be used as smelter flux, cement raw material, construction aggregate, foundation backfill, railway ballast, road pavement, brick, slag fertilizer and soil amendment, etc.

EQUIPMENTS

Jaw crusher, cone crusher, vibrating feeder, vibrating screen, magnetic separator, belt conveyor.

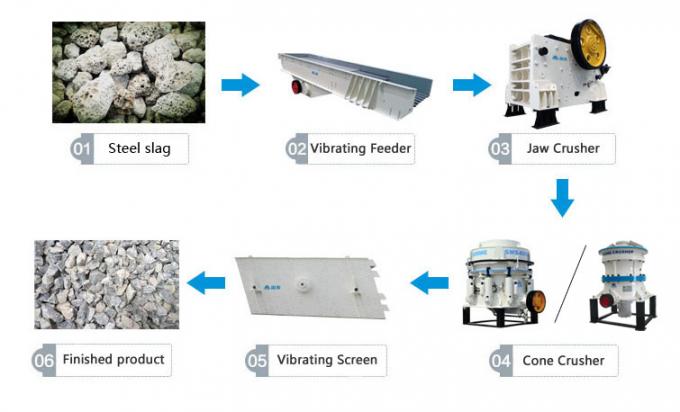

STEEL SLAG CRUSHING PROCESS

Raw material (less than 350mm ) will be conveyed to vibrating feeder, grate of vibrating feeder is set to 100mm, material with size less than 100mm(from vibrating feeder) will be conveyed to cone crusher, material with size larger than 100mm will be conveyed to jaw crusher for primary crushing.

The material from jaw crusher will be conveyed to cone crusher for secondary crushing, one magnetic separator is used in front of cone crusher for removing iron, and another magnetic separator is used behind cone crusher for removing steel chips from slag.

The material after passing through magnetic separator will be conveyed to vibrating screen for screening; material with size larger than 10mm will be conveyed back to cone crusher for being crushed once again, material with size less than 10mm will be discharged as final product.
