ISO HC128 Limestone Feeding 450mm Impact Stone Crusher

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	HC128, HC139, HC239, HC255, HC579, HC679, HC779, HC798, HC898, HC8118

Detail Information
Max Feeding Size:	450mm	Applicable Industries:	Building Material Shops, Construction Works , Energy & Mining
Online Service Time:	24 Hours Online For Your Consultation	Color:	Customizable
The Machines Class:	Mining Machinery	Certification:	CE, ISO
High Light:	HC128 Impact Stone Crusher,Feeding 450mm Hydraulic Cone Crusher,ISO Limestone Impact Stone Crusher

Product Description

limestone crushing production line

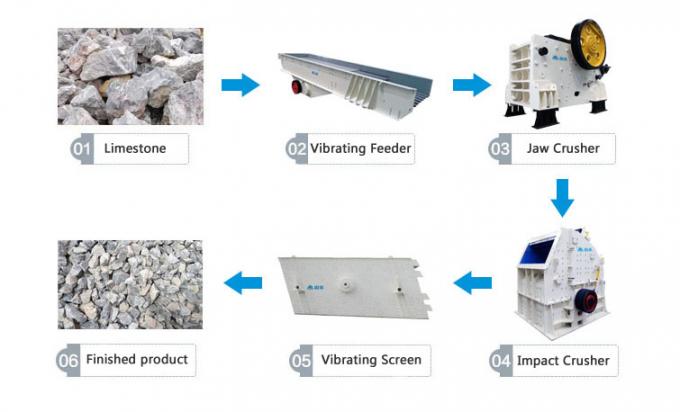

BASIC PROCESS OF LIMESTONE CRUSHING PRODUCTION PLANT

The limestone crushing production line is divided into three stages: coarse crushing, medium fine crushing and screening.

The first stage: coarse crushing

The limestone stone blasted from the mountain is fed uniformly by the vibrating feeder through the silo and transported to the jaw crusher for coarse crushing.

The second stage: medium and fine crushing

The coarsely crushed materials are screened by vibrating screen and then conveyed by belt conveyor to cone crusher for medium and fine crushing.

The third stage: screening

The medium and finely crushed stones are conveyed to the vibrating screen through a belt conveyor to separate stones of different specifications. The stones that meet the requirements of the customer’s particle size are conveyed to the finished product pile through the belt conveyor. The impact crusher crushes again, forming a closed circuit cycle.

Technical Data of HC Series Impact Crusher:

Model	Max Feed Size(mm)	Throughput(t/h)	Motor Power(kw)	Overall Dimension(L×W×H)(mm) ( the biggest size )	Weight(Motor not included)(t)
HC128	300	40-70	37-55	311516002932	11.8
HC139	400	50-80	55-75	306020482935	14.6
HC239	500	100-180	110-132	309520482970	14.7
HC255	500	100-290	132-160	309523982970	17.4
HC359Ⅱ	700	180-350	200-250	341526663127	22.2
HC459	750	220-450	250-315	371730203301	27
HC579	800	250-550	400-500	355235473231	36.2
HC679	1000	400-700	560-630	401940643652	53.2
HC779	1300	500-850	630-800	478543384849	79
HC798	1300	750-1100	800-1250	482548384849	90.8
HC898	1500	1000-1500	1000-1600	538254455454	112.8
HC8118	1600	1500-2000	1400-2000	538259455454	135.5
HC8138	1600	1800-2500	1600-2100	534865275454	158.8
HC10158	1900	3600-4000	2800-3150	612072106250	212.3

Technical Data of HSI Series Impact Crusher:

Model	Max Feed Size(mm)	Throughput(t/h)	Motor Power(kw)	Overall Dimension(L×W×H)(mm) ( the biggest size )	Weight(Motor not included)(t)
HSI379	350	240-460	250-280	327135272730	23.23
HSI498	400	275-560	280-355	375535222833	27.2
HSI5118	450	375-825	500-710	355245472746	36.2
HSI6118	500	600-900	800-900	373352723306	56.2
HSI7138	500	875-1490	900-1250	478558384120	78
