Construction Works 450mm Feed SMH120 Mining Crushing Machine

Minimum Order Quantity: Negotiate Price Negotiate
Packaging Details Standard container, spare parts will be packed in wooden cases Delivery Time 2 months
Payment Terms: T/T, L/C Supply Ability 50 sets per Month
Place of Origin: Shanghai, China Brand Name: SANME
Certification: ISO&CE Model Number: SMH120,SMH180,SMH250,SMH350,SMH550

Detail Information
Max Feeding Size: 450mm Capacity(t/h): 100-500t/h
Applicable Industries: Building Material Shops, Construction Works , Energy & Mining Product Name: Sand Making Production Line
Certification: ISO9001:2008, CE The Machines Classification:: Building Stone Production Line
High Light:

SMH120 Mining Crushing Machine,450mm Feed Mining Crushing Machine,ISO Mining Crushing Machine

Product Description

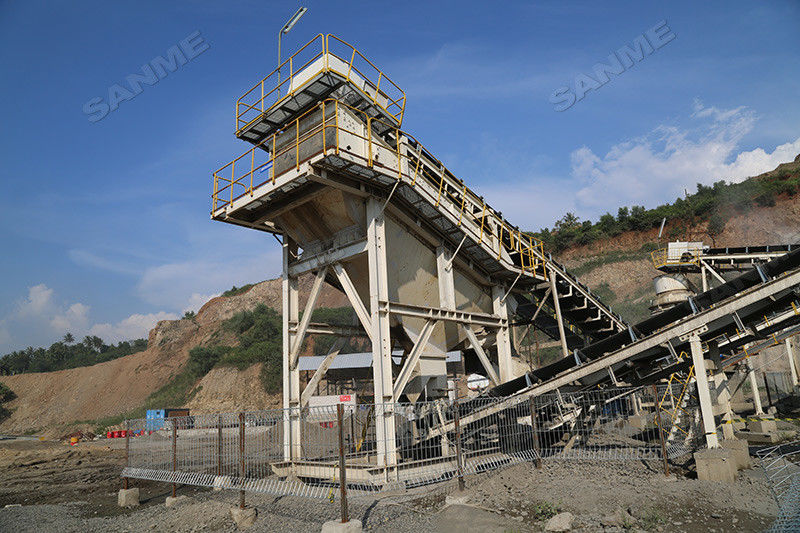

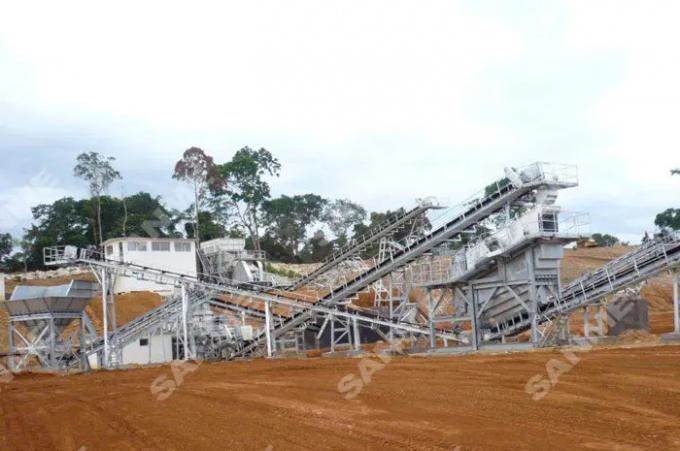

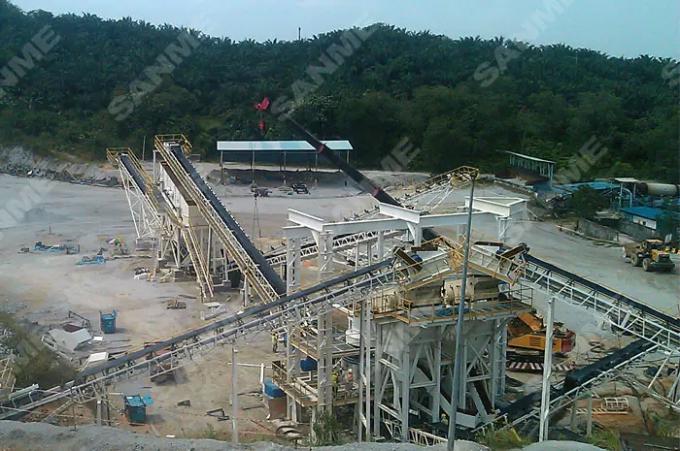

Wet sand making line

My company’s system of sand production line configuration according to the actual field on-site investigation situation or customer requirements for the customer design, fully embodies the design rationality, effectiveness, applicability, large capacity, low wear, low running cost are the significant characteristics of the abundant technical strength and perfect service system is the guarantee of the customer rest assured the choose and buy and use, according to different technical requirements, various types of equipment undertakes assorted, meet customer’s different technological requirements.

FEATURE INTRODUCTION OF RIVER PEBBLES SAND MAKING PLANT

The sand making production line has the features of reasonable configuration, high automation, low operation cost, high crushing rate, energy saving, environmental protection, high capacity and easy maintenance, the manufactured sand conforms to national standard for construction sand, uniform grain, excellent particle size, well graded.

The equipments of the sand making production line are configured in accordance with the specification and output as well as application of the sand, we provide solution and technical support, and design the process according to the production site of customer, we make every effort to provide the most reasonable and economic production line for customers.

Technical description:
1. This process is designed according to the parameters provided by the customer. This flow chart is for reference only.
2. The actual construction should be adjusted according to the terrain.
3. The mud content of the material cannot exceed 10%, and the mud content will have an important impact on the output, equipment and process.
4. SANME can provide technological process plans and technical support according to the actual requirements of customers, and can also design non-standard supporting components according to the actual installation conditions of customers.

Technical Data of SMH Series Standard Head Hydraulic Cone Crusher:

Model Max Feeding Size(mm) Discharge Range(mm) Moter Power(kw) Capacity(t/h) — open circuit,closed discharge(mm)
9 13 16 19 22 26 32 38 51 63 76 89
SMH120C 160 22~32 75-90         120 130 150
SMH120M 130 13~26 75-90   70 85 100 120 130
SMH120F 102 9~22 75-90 58 70 85 90 110
SMH180C 180 22~32 132-160         185 195 215
SMH180M 140 13~32 132-160   90 115 135 160 180 200
SMH180F 60 9~22 132-160 60 80 100 120 140
SMH250EC 260 26~51 160-200           250 290 340 395
SMH250C 220 19~51 160-200       182 209 236 279 334 365
SMH250M 150 16~38 160-200     140 165 185 220 275 330
SMH250F 115 13~31 160-200   115 133 156 176 192 226
SMH350EC 315 38~63 250-280               555 649 766
SMH350C 230 26~63 250-280           366 430 468 629 657
SMH350M 205 22~52 250-280         296 343 387 427 479
SMH350F 180 16~38 250-280     212 239 270 320 355 374
SMH550EC 450 38~89 355-400               920 1179 1380 1475 1566
SMH550C 350 31~76 355-400             800 850 1100 1288 1398
SMH550M 320 25~63 355-400           612 735 815 980 1137
SMH550F 268 19~52 355-400       392 453 535 620 725 867

Technical Date of SMH Series Short Head Hydraulic Cone Crusher:

Model Max Feeding Size(mm) Discharge Range(mm) Moter Power(kw) Capacity(t/h) — open circuit,closed discharge(mm)
3 5 6 9 13 16 19 22 26 32 38
SMH120DC 70 6-19 75-90     62 82 102 123 138
SMH120DM 51 5-16 75-90   45 58 78 99 116
SMH120DF 35 3-13 75-90 30 45 58 78 95
SMH180DC 70 6-9 75-90     72 90 108 131 158
SMH180DM 51 5-16 75-90   68 76 95 118 145
SMH180DF 35 3-13 75-90   70 82 95 120
SMH250DC 89 9-22 160-220       126 168 196 215 252
SMH250DM 70 6-16 160-220     88 117 156 172
SMH250DF 54 5-16 160-220   63 86 115 143 169
SMH350DEC 133 13-25 250-280         262 308 322 358 385
SMH350DC 133 10-25 250-280       208 262 308 322 358 385
SMH350DM 89 6-19 250-280     136 186 233 260 293
SMH350DF 70 6-13 250-280     136 186 233
SMH550DEC 203 16-25 400           516 593 656 696
SMH550DC 178 13-25 400         455 498 552 600 643
SMH550DM 133 10-19 400       355 416 472 530
SMH550DF 105 6-16 400     276 355 385 448

Technical Data of VC7(H) Series Vertical Shaft Impact Crusher:

Model Rotation Speed of Impeller (r/min) Max Feed Size (mm) Throughput (t/h) (Full feeding center / center plus waterfall feeding) Motor Power (kw) Overall Dimensions (mm) Weight(motor not included) (kg)
VC726L 1881-2499 35 60-102 90-176 110 3600*1969*2200 ≤7055
VC726M 70-126 108-211 132
VC726H 96-150 124-255 160
VC730L 1630-2166 40 109-153 145-260 180 4600*2150*2480 ≤10000
VC730M 135-200 175-340 220
VC730H 160-243 211-410 264
VC733L 1455-1934 55 165-248 215-415 264 5500*2563*3178 ≤14020
VC733M 192-286 285-532 320
VC733H 238-350 325-585 400
VC743L 1132-1504 60 230-346 309-577 400 5850*2740*3031 ≤21040
VC743M 246-373 335-630 440
VC743H 281-405 366-683 500
VC766L 1132-1504 60 362-545 486-909 2*315 5850*2740*3050 ≤21840
VC766M 397-602 540-1016 2*355
VC788L 517-597 65 460-692 618-1154 2*400 6000*3040*3456 ≤23220
VC788M 560-848 761-1432 2*500
VC799L 517-597 65 644-967 865-1615 2*560 6000*3122*3625 ≤24980
VC799M 704-1068 960-1804 2*630

Technical Data of VCU7(H) Series Vertical Shaft Impact Crusher:

Model Rotation Speed of Impeller (r/min) Max Feed Size (mm) Throughput (t/h) (Full feeding center / center plus waterfall feeding) Motor Power (kw) Overall Dimensions (mm) Weight(motor not included) (kg)
VCU726L 1881-2499 55 86-143 108-211 110 3600*1969*2200 ≤6950
VCU726M 98-176 124-253 132
VCU726H 132-210 143-300 160
VCU730L 1630-2166 65 150-212 162-310 180 4600*2150*2482 ≤9910
VCU730M 186-280 203-408 220
VCU730H 220-340 245-480 264
VCU733L 1455-1934 80 230-338 255-497 264 5500*2563*3178 ≤13820
VCU733M 268-398 296-562 320
VCU733H 327-485 373-696 400
VCU743L 1132-1504 100 305-467 362-678 400 5850*2740*3031 ≤21240
VCU743M 335-506 379-746 440
VCU743H 375-540 439-800 500
