ISO Feeding 450mm Granite Aggregate Crushing Equipment

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	SMH120,SMH180,SMH250,SMH350,SMH550

Detail Information
Spare Parts Supply:	Will Supply Any Time	Max Feeding Size:	450mm
Motor Type:	AC Motor	Application:	Crusher
Condition:	New	After Warranty Service:	Online Support, Field Maintenance And Repair Service
High Light:	450mm Aggregate Crushing Equipment,Granite Aggregate Crushing Equipment,1900t/H Granite Crushing Machine

Product Description

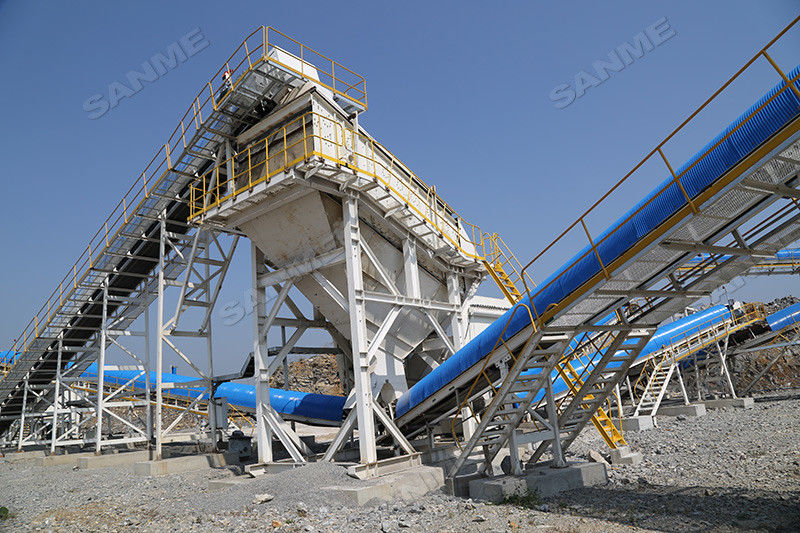

BASIC PROCESS OF GRANITE CRUSHING PRODUCTION PLANT

The granite crushing production line is divided into three stages: coarse crushing, medium fine crushing and screening.

The first stage: coarse crushing

The granite stone blasted from the mountain is fed uniformly by the vibrating feeder through the silo and transported to the jaw crusher for coarse crushing.

The second stage: medium and fine crushing

The coarsely crushed materials are screened by vibrating screen and then conveyed by belt conveyor to cone crusher for medium and fine crushing.

The third stage: screening

The medium and finely crushed stones are conveyed to the vibrating screen through a belt conveyor to separate stones of different specifications. The stones that meet the requirements of the customer’s particle size are conveyed to the finished product pile through the belt conveyor. The impact crusher crushes again, forming a closed circuit cycle.

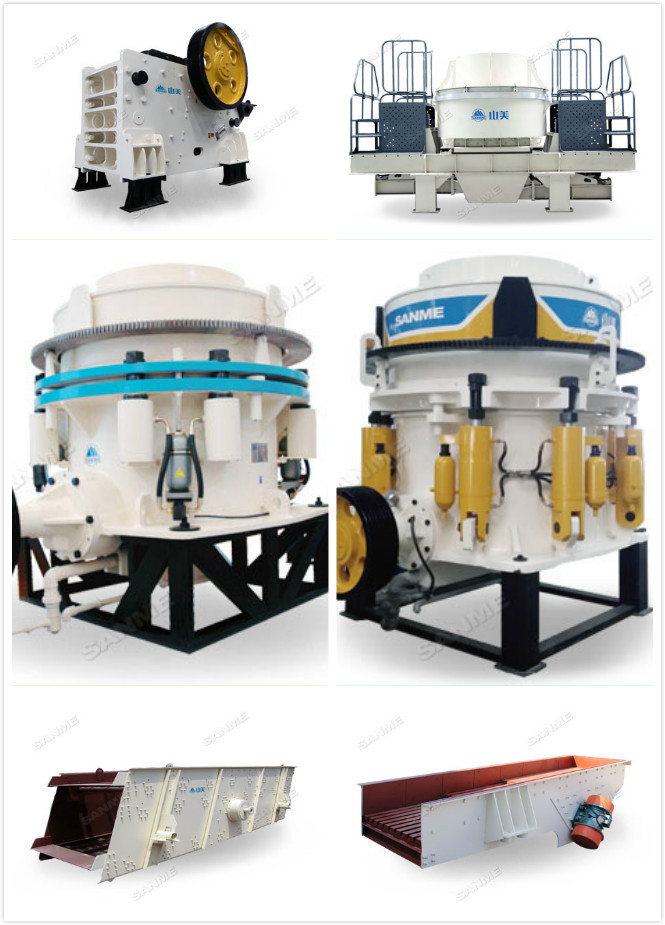

GRANITE AGGREGATES PROCESSING RECOMMEND MACHINE

ISO Feeding 450mm Granite Aggregate Crushing Equipment 0
