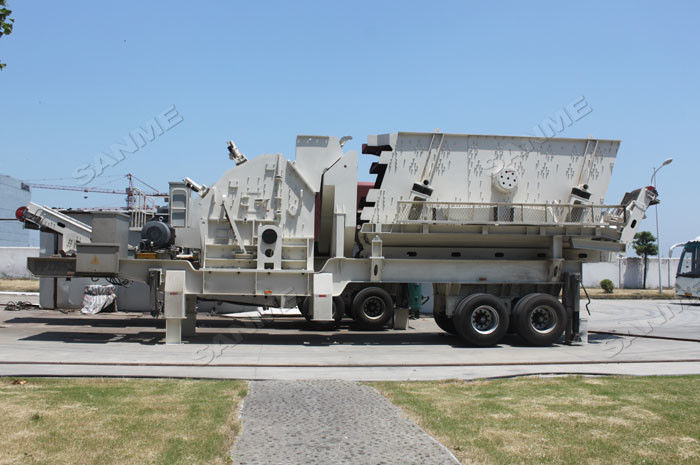

Height 4890mm Andesite Feed 1520mm Compact Mobile Crusher

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	PP128HC,PP139HC,PP239HC,PP255HC,PP359HC,PP459HC,PP139HCS,PP239HCS,PP255HCS,PP359HCS

Detail Information
Crushing Materials:	River Pebbles, Rocks (limestone, Granite, Basalt, Diabase, Andesite, Etc.)	Capacity:	40-450t/h
Max Feed Size:	400-1520mm	Application:	Mining And Construction Field, Mining, Construction, Etc
After-sales Service Provided:	Video Technical Support, Free Spare Parts, Online Support,	The Machines Classification:	Mobile Crushing Plant
High Light:	1520mm Compact Mobile Crusher,Andesite Compact Mobile Crusher,Height 4890mm Mobile Stone Crusher

Product Description

40-450t/h

400-1520mm

River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.)

Stone mining, metallurgy industry, building material, highway, railway, and chemical,etc.

1. High-performance PF Series crusher;

2. Feeder with car, Vibrating Screen, Belt Conveyor;

3. Pulling the steering shaft to facilitate road transport;

4. In-car installation support, equipment site installation fast and convenient;

5. Supporting the installation of the motor and control box integration;

6. Mobility; structure is compact, easy to use;

7. Stable performance, easy maintenance; flexible configuration;

8. Saving cost, and reducing costs;

Model	PP128HC	PP139HC	PP239HC	PP255HC	PP359HC	PP459HC
Transport dimensions
Length(mm)	10850	10800	11030	11490	13670	13670
Width(mm)	2780	2780	2780	2880	3110	3110
Height(mm)	4400	4400	4370	4460	4780	4890
Weight(kg)	27000	30000	37700	48400	60100	63500
Axle weight(kg)	18500	19000	25600	30920	3800	39500
King pin weight(kg)	8500	11000	12100	17520	21300	24000
Impact Crusher
Model	HC128	HC139	HC239	HC255	HC359	HC459
Feed opening(mm)	300	400	500	500	600	750
Capacity(t/h)	40-70	50-80	70-120	130-180	160-250	220-450
Feeder
Model	GZT0724	GZT0724	GZT0932	ZSW380*95	ZSW490*110	ZSW490*110
Feed hopper volume(m3)	3.2	3.2	7.6	9	10	10
Belt Conveyor
Model	B500*7.5	B800*7	B800*7.5	B1000*8	B1000*8	B1200*8.3
Permanent Magnetic Separator
Magnetic separator	optional	optional	optional	optional	optional	optional

Product Data

Model	PP128HC	PP139HC	PP239HC	PP255HC	PP359HC	PP459HC
Transport dimensions
Length(mm)	10850	10800	11030	11490	13670	13670
Width(mm)	2780	2780	2780	2880	3110	3110
Height(mm)	4400	4400	4370	4460	4780	4890
Weight(kg)	27000	30000	37700	48400	60100	63500
Axle weight(kg)	18500	19000	25600	30920	3800	39500
King pin weight(kg)	8500	11000	12100	17520	21300	24000
Impact Crusher
Model	HC128	HC139	HC239	HC255	HC359	HC459
Feed opening(mm)	300	400	500	500	600	750
Capacity(t/h)	40-70	50-80	70-120	130-180	160-250	220-450
Feeder
Model	GZT0724	GZT0724	GZT0932	ZSW380*95	ZSW490*110	ZSW490*110
Feed hopper volume(m3)	3.2	3.2	7.6	9	10	10
Belt Conveyor
Model	B500*7.5	B800*7	B800*7.5	B1000*8	B1000*8	B1200*8.3
Permanent Magnetic Separator
Magnetic separator	optional	optional	optional	optional	optional	optional
