Length 9800mm 150t/H VSI Mobile Sand Making Machine

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	PP5000VSI,PP5000VSIS,PP6000VSI,PP6000VSIS,PP7000VSI,PP7000VSIS

Detail Information
Capacity:	80-350t/h	Max Feeding Size:	65-80mm
Application:	Stone Mining, Metallurgy Industry, Building Material, Highway, Railway	Weight:	21.6-33.2T
Product Type:	VSI Crusher,Mobile Crusher,Portable VSI Crusher	Warranty:	1 YEAR
High Light:	VSI Mobile Sand Making Machine,80mm Mobile Sand Making Machine,9800mm Vertical Impact Crusher

Product Description

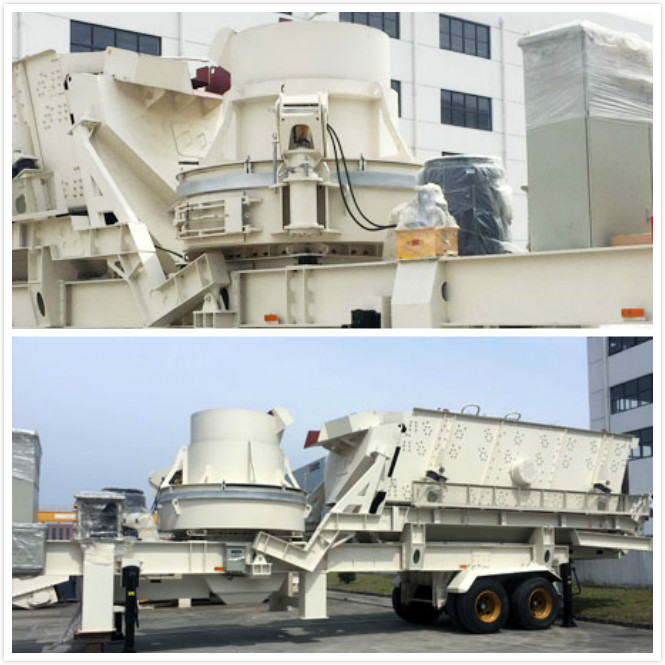

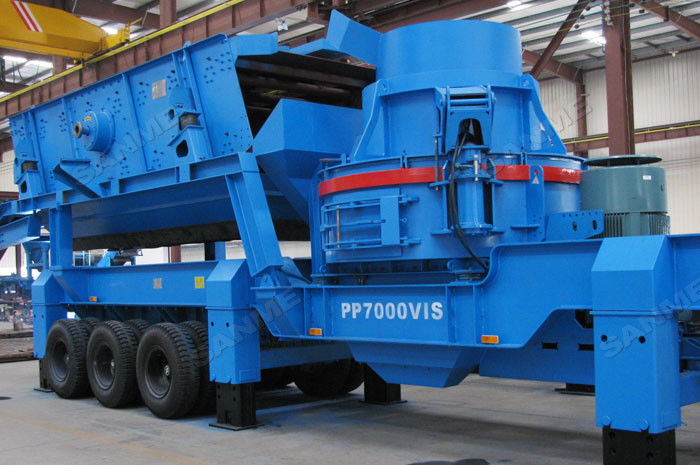

PP SERIES PORTABLE VSI CRUSHER

PP Series Portable VSI Crusher (Portable vertical shaft Impact crusher) is equipped with high-performance VSI crusher and vehicle-mounted feeder and high strength screen of short length, light weight, high mobility, and strong adaptability.

TECHNOLOGY ADVANTAGES OF PP SERIES PORTABLE VSI CRUSHER

High-performance VSI series Vertical Impact Crusher

Vehicle-mounted feeder, vibrating screen, belt conveyor.

Traction steering shaft, convenient for highway transportation.

Vehicle mounting support, fast and convenient for installation in the site.

Integration of the mating motor and control box.

CAPACITY

80-350t/h

MAX FEEDING SIZE

65-80mm

RAW MATERIALS

River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.)

APPLICATION

Stone mining, metallurgy industry, building material, highway, railway, and chemical,etc.

Product Data

Model	PP5000VSI	PP5000VSIS	PP6000VSI	PP6000VSIS	PP7000VSI	PP7000VSIS
Transport dimensions
Length(mm)	9800	11280	11500	15470	14000	15420
Width(mm)	2490	2780	2780	2780	3300	2780
Height(mm)	4200	4100	3850	4180	4160	4250
Weight(kg)	21600	28000	22100	32600	23200	33200
Axle weight(kg)	14600	19200	15100	22300	15100	21700
King pin weight(kg)	7000	8800	7000	10300	8100	11500
VSI Crushers
Model	VSI-5000	VSI-5000	VSI-6000	VSI-6000	VSI-7000	VSI-7000
Feed opening(mm)	65(80)	65(80)	70(100)	70(100)	70(100)	70(100)
Throughput capacity range(t/h)	80-150	80-150	120-250	120-250	180-350	180-350
Screen
Model		3YK1548		3YK1860		3YK2160
BELT CONVEYOR
Model	B650*6.5	B800*7.2	B800*6.7	B1000*8.6	B1000x7.2	B1000x7.2
Number of Axles	1	2	2	2	3	2
