400Kw Metallurgy Feeding 460mm Cone Crusher Machine
Minimum Order Quantity: | Negotiate | Price | Negotiate |
---|---|---|---|
Packaging Details | Standard container, spare parts will be packed in wooden cases | Delivery Time | 2 months |
Payment Terms: | T/T, L/C | Supply Ability | 50 sets per Month |
Place of Origin: | Shanghai, China | Brand Name: | SANME |
---|---|---|---|
Certification: | ISO&CE | Model Number: | VC726, VC730, VC733, VC743, VC766, VC788, VC799 |
Detail Information |
|||
Capacity(t/h): | 60-1804 | Max Feedding Size: | 100mm |
---|---|---|---|
Warranty: | One Year | Weight: | According To Different Model |
Max Feeding Size: | 100mm | Product Name: | Good Quality Hard Stone Vsi Sand Maker Crusher Equipment |
High Light: |
VSI Vertical Shaft Impact Crusher,400kw Vertical Shaft Impact Crusher,350t/H Vsi Impact Crusher |
Product Description
VC7 Crushers Manufacturer , Since 2000 , Sino-German JV holding
VSI crusher machine can be used in Pebble, rock (the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, slags, artificial sand production. Can be used in Building aggregate, highway, asphalt concrete and cement aggregate production.

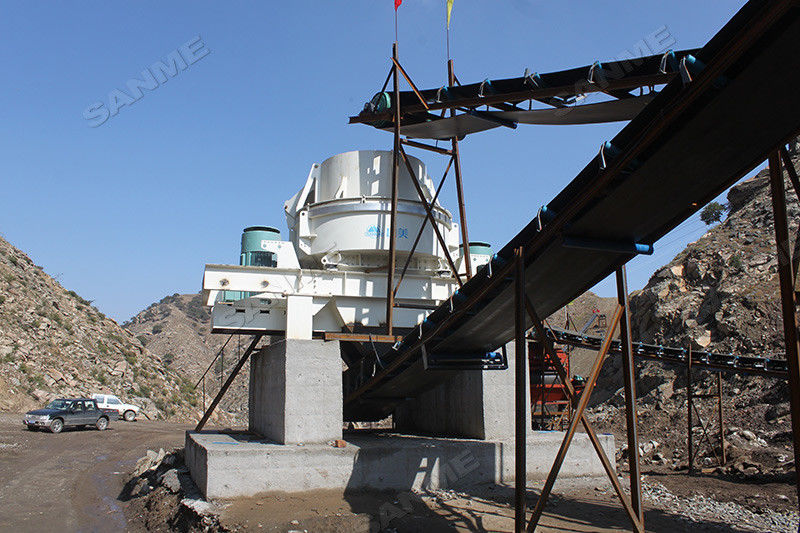

Vertical shaft Impact Crusher, which are high-functioned equipment for making sand and shaping, are developed and produced by SANME. Thin oil lubrication excels traditional lubrication in many aspects: larger rotation rate, patent sealing structure, and high sand production ratio.
Capacity: 60-1804t/h Max Feeding Size: 100mm
Patented rotor.
Perfect interchange between ROR and ROA.
Rotor with thin oil lubrication …
Model | Rotation Speed of Impeller (r/min) | Max Feed Size (mm) | Throughput (t/h) (Full feeding center / center plus waterfall feeding) | Motor Power (kw) | Overall Dimensions (mm) | Weight(motor not included) (kg) | |
VC726L | 1881-2499 | 35 | 60-102 | 90-176 | 110 | 3600*1969*2200 | ≤7055 |
VC726M | 70-126 | 108-211 | 132 | ||||
VC726H | 96-150 | 124-255 | 160 | ||||
VC730L | 1630-2166 | 40 | 109-153 | 145-260 | 180 | 4600*2150*2480 | ≤10000 |
VC730M | 135-200 | 175-340 | 220 | ||||
VC730H | 160-243 | 211-410 | 264 | ||||
VC733L | 1455-1934 | 55 | 165-248 | 215-415 | 264 | 5500*2563*3178 | ≤14020 |
VC733M | 192-286 | 285-532 | 320 | ||||
VC733H | 238-350 | 325-585 | 400 | ||||
VC743L | 1132-1504 | 60 | 230-346 | 309-577 | 400 | 5850*2740*3031 | ≤21040 |
VC743M | 246-373 | 335-630 | 440 | ||||
VC743H | 281-405 | 366-683 | 500 | ||||
VC766L | 1132-1504 | 60 | 362-545 | 486-909 | 2*315 | 5850*2740*3050 | ≤21840 |
VC766M | 397-602 | 540-1016 | 2*355 | ||||
VC788L | 517-597 | 65 | 460-692 | 618-1154 | 2*400 | 6000*3040*3456 | ≤23220 |
VC788M | 560-848 | 761-1432 | 2*500 | ||||
VC799L | 517-597 | 65 | 644-967 | 865-1615 | 2*560 | 6000*3122*3625 | ≤24980 |
VC799M | 704-1068 | 960-1804 | 2*630 |
Model | Rotation Speed of Impeller (r/min) | Max Feed Size (mm) | Throughput (t/h) (Full feeding center / center plus waterfall feeding) | Motor Power (kw) | Overall Dimensions (mm) | Weight(motor not included) (kg) | |
VCU726L | 1881-2499 | 55 | 86-143 | 108-211 | 110 | 3600*1969*2200 | ≤6950 |
VCU726M | 98-176 | 124-253 | 132 | ||||
VCU726H | 132-210 | 143-300 | 160 | ||||
VCU730L | 1630-2166 | 65 | 150-212 | 162-310 | 180 | 4600*2150*2482 | ≤9910 |
VCU730M | 186-280 | 203-408 | 220 | ||||
VCU730H | 220-340 | 245-480 | 264 | ||||
VCU733L | 1455-1934 | 80 | 230-338 | 255-497 | 264 | 5500*2563*3178 | ≤13820 |
VCU733M | 268-398 | 296-562 | 320 | ||||
VCU733H | 327-485 | 373-696 | 400 | ||||
VCU743L | 1132-1504 | 100 | 305-467 | 362-678 | 400 | 5850*2740*3031 | ≤21240 |
