Sand Crushing Machine

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	VC726, VC730, VC733, VC743, VC766, VC788, VC799

Detail Information
Capacity(t/h):	30-600t/h	Max Feedding Size:	45mm-150mm
Factory Visit:	Welcomed Warmly	Warranty:	One Year
Weight:	According To Different Model	Application:	Mining, Sand Making, Quarry, Stone Crushing
High Light:	VSI Artificial Sand Making Machine,100mm Sand Making Machine,1804t/HVertical shaft Impact Crusher

Product Description

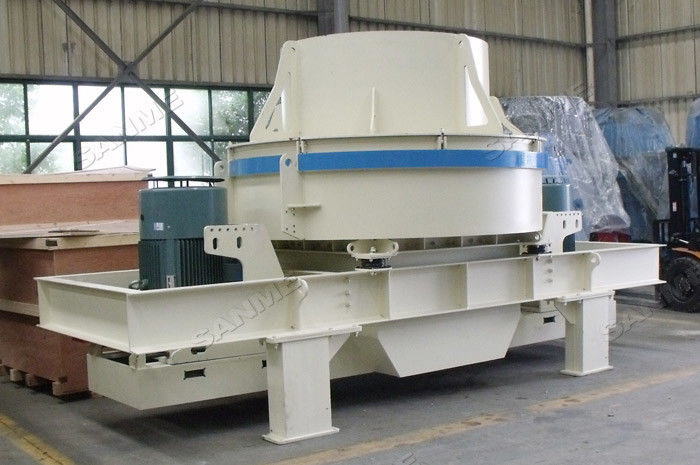

Sand Crushing Machine

Working Principle

Material falls into the high speed turning impellers from the top of machine and crushes with the material distributed around the impeller under the effect of high speed centrifugal force. After the impact with each other, the material is crushed between impeller and cabinet and is discharged from the bottom. It can cycle many times with the close circuit and the sieve device will control the granularity of finished products.

Technical Data of VC7(H) Series Vertical Shaft Impact Crusher:

Model	Rotation Speed of Impeller (r/min)	Max Feed Size (mm)	Throughput (t/h) (Full feeding center / center plus waterfall feeding)		Motor Power (kw)	Overall Dimensions (mm)	Weight(motor not included) (kg)
VC726L	1881-2499	35	60-102	90-176	110	360019692200	≤7055
VC726M			70-126	108-211	132
VC726H			96-150	124-255	160
VC730L	1630-2166	40	109-153	145-260	180	460021502480	≤10000
VC730M			135-200	175-340	220
VC730H			160-243	211-410	264
VC733L	1455-1934	55	165-248	215-415	264	550025633178	≤14020
VC733M			192-286	285-532	320
VC733H			238-350	325-585	400
VC743L	1132-1504	60	230-346	309-577	400	585027403031	≤21040
VC743M			246-373	335-630	440
VC743H			281-405	366-683	500
VC766L	1132-1504	60	362-545	486-909	2*315	585027403050	≤21840
VC766M	1132-1504	60	397-602	540-1016	2*355	585027403050	≤21840
VC788L	517-597	65	460-692	618-1154	2*400	600030403456	≤23220
VC788M	517-597	65	560-848	761-1432	2*500	600030403456	≤23220
VC799L	517-597	65	644-967	865-1615	2*560	600031223625	≤24980
VC799M	517-597	65	704-1068	960-1804	2*630	600031223625	≤24980

Technical Data of VCU7(H) Series Vertical Shaft Impact Crusher:

Model	Rotation Speed of Impeller (r/min)	Max Feed Size (mm)	Throughput (t/h) (Full feeding center / center plus waterfall feeding)		Motor Power (kw)	Overall Dimensions (mm)	Weight(motor not included) (kg)
VCU726L	1881-2499	55	86-143	108-211	110	360019692200	≤6950
VCU726M			98-176	124-253	132
VCU726H			132-210	143-300	160
VCU730L	1630-2166	65	150-212	162-310	180	460021502482	≤9910
VCU730M			186-280	203-408	220
VCU730H			220-340	245-480	264
VCU733L	1455-1934	80	230-338	255-497	264	550025633178	≤13820
VCU733M			268-398	296-562	320
VCU733H			327-485	373-696	400
VCU743L	1132-1504	100	305-467	362-678	400	585027403031	≤21240
