350t/H Granite Portable Crushing Plants For Metallurgy Industry

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	Belt Conveyor

Detail Information
Raw Materials:	Granite, Limestone, Concrete, Lime, Plaster, Slaked Lime, Etc.	Capacity:	80-350t/h
Application:	Stone Mining, Metallurgy Industry, Building Material, Highway, Railway, And Chemical,etc.	Warranty::	1 Year
Installation:	Offer Foundation Drawing, Guided	Voltage:	According To Model Size
High Light:	350t/H Granite Portable Crushing Plants,9800mm Length Granite Crusher,80mm Feeding Portable Crushing Plants

Product Description

THE OUTSTANDING PERFORMANCE OF PP SERIES PORTABLE CRUSHER

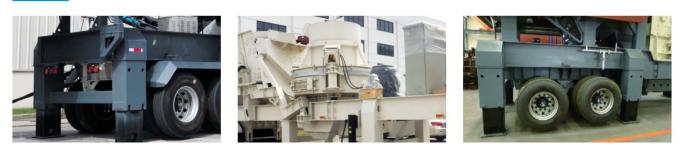

Great Mobility

PP Series Portable Crushing Plants are of short length. Different crushing equipment is separately installed on a separate mobile chassis. Its short wheelbase and tight turning radius mean they can be transported on highway and moved at crushing sites.

Lower Transportation Cost

PP Series Portable Crushing Plants can crush materials on-site. It is unnecessary to carry the materials from one site and then crush them in another one, which can greatly lower the transporting cost for off-site crushing.

Flexible Configuration and Great Adaptability

According to the different requirements of different crushing process, PP Series Portable Crushing Plants can form the following two processes of “crushing first, screening second” or “screening first, crushing second”. The crushing plant can be composed of two-stage plants or three-stage plants. The two-stage plants consists primary crushing plant and secondary crushing plant, while the three-stage plants includes primary crushing plant, secondary crushing plant and tertiary crushing plant, each of which is of high flexibility and can be used individually.

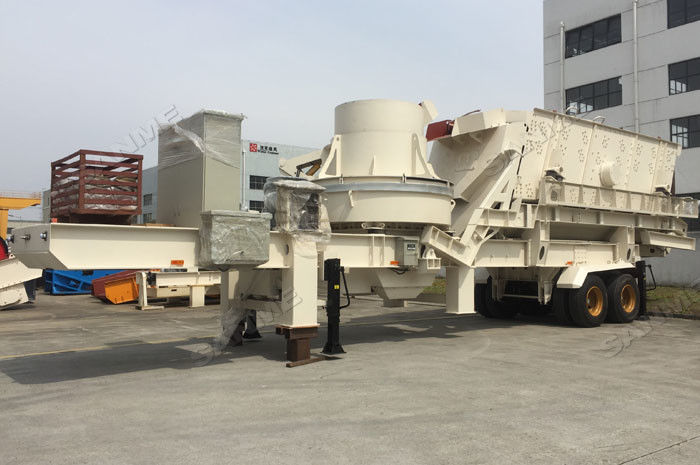

WORKING PRINCIPLE OF PP SERIES PORTABLE VERTICAL SHAFT IMPACT CRUSHER

Material preselected by the feeder, and the VSI impact crusher makes the sand production. A closed-circuit system is formed through the vibrating screen, which realizes materials cycle broken and can reduces processing sectors effectively. The final material is discharged by belt conveyor to make continuous crushing operations.

Technical Data of PP Series Portable VSI Crusher

Model	PP5000VSI	PP5000VSIS	PP6000VSI	PP6000VSIS	PP7000VSI	PP7000VSIS
Transport dimensions
Length(mm)	9800	11280	11500	15470	14000	15420
Width(mm)	2490	2780	2780	2780	3300	2780
Height(mm)	4200	4100	3850	4180	4160	4250
Weight(kg)	21600	28000	22100	32600	23200	33200
Axle weight(kg)	14600	19200	15100	22300	15100	21700
King pin weight(kg)	7000	8800	7000	10300	8100	11500
VSI Crusher
Model	VSI-5000	VSI-5000	VSI-6000	VSI-6000	VSI-7000	VSI-7000
Feed opening(mm)	65(80)	65(80)	70(100)	70(100)	70(100)	70(100)
Throughput capacity range(t/h)	80-150	80-150	120-250	120-250	180-350	180-350
Screen
Model		3YK1548		3YK1860		3YK2160
BELT CONVEYOR
Model	B650*6.5	B800*7.2	B800*6.7	B1000*8.6	B1000x7.2	B1000x7.2
Number of Axles	1	2	2	2	3	2
