High Automation Mining Crushing Machine , Mining Rock Crusher Optimized Cavity

Minimum Order Quantity: Negotiate Price Negotiate
Packaging Details Standard container, spare parts will be packed in wooden cases Delivery Time 2 months
Payment Terms: T/T, L/C Supply Ability 50 sets per Month
Place of Origin: Shanghai, China Brand Name: SANME
Certification: ISO&CE Model Number: VC726, VC730, VC733, VC743, VC766, VC788, VC799

Detail Information

Capacity: 60-1804t/h Max Feed Size: 35mm-100mm
Power: 110-2*630KW Application: Engineering, Highway,railway, Passenger Line, Bridges,airport Runways,municipal Engineering,high-rise
Spare Parts Supply: Will Supply Any Time The Machines Classification: Sand Maker
Test&installation: Engineer’s Guide Quality: High Leavel
High Light:

mining jaw crusher,mining crusher machine

Product Description

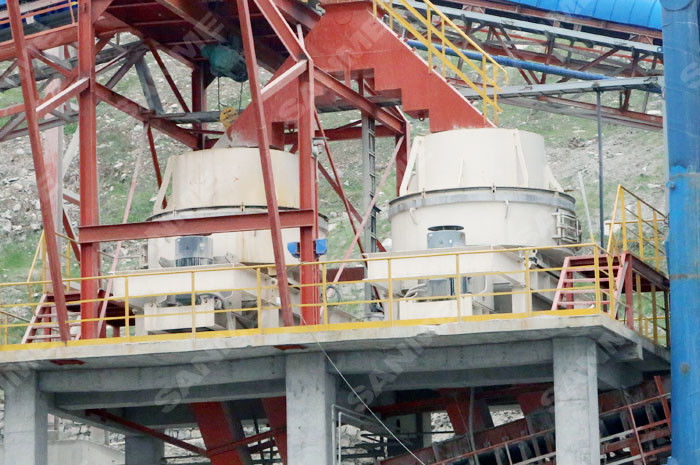

High Automation Mining Crushing Machine , Mining Rock Crusher Optimized Cavity



VC7 Series Rotor Centrifugal Crushers is a new sand maker, which is high-functioned equipment for making sand and shaping, is researched and produced by our corporation, absorbed with the advanced technology from Germany, and owned advanced world standards. This equipment has two types: rock-on-rock and rock-on-iron.



Application of VSI Series Sand Maker

1. River stone, mountain stone(limestone, basalt, granite, diabase, andesite.etc), Ore tailings, aggregate chips

2. Hydraulic and hydroelectric engineering, high-level road, highway and railway, passenger rail line, bridge, airport runway, municipal projects, sand making and rock reshaping

3. Building aggregate, highway road fabrics, cushion material, asphalt concrete and cement concrete aggregate.

4. Crushing progress before grinding in mining field. The crushing of building material, metallurgy, chemical industry, mining, fireproofing, cement, abrasive, etc.

5. Breaking of high abrasive and secondary disintegration, sulfur in thermal power and metallurgy industry, environmental projects such as slag, construction waste crushing

6. Manufacturing of glass, quartz sand and other high purity material





Features and Benefits



Patented rotor
Perfect interchange between ROR and ROA
Rotor with thin oil lubrication
Easy disassembly platform design
High automation



Our Service



1. Professinal Technical consultation 24-hour onlineservice

2. Free designing, choosing suitable equipment for you.

3. Hot-selling products, finished machine in stock, Shorten the leadtime and let the goods reach you earlier

4. Continuous technical support to help you solve technical problems encountered during installation and commissioning

5. 1 year warranty of whole machine, the host damage is directly replaced by a new machine for free!



Technical Data of VC7(H) Series Vertical Shaft Impact Crusher:

Model Rotation Speed of Impeller (r/min) Max Feed Size (mm) Throughput (t/h) (Full feeding center / center plus waterfall feeding) Motor Power (kw) Overall Dimensions (mm) Weight(motor not included) (kg)
VC726L 1881-2499 35 60-102 90-176 110 3600*1969*2200 ≤7055
VC726M 70-126 108-211 132
VC726H 96-150 124-255 160
VC730L 1630-2166 40 109-153 145-260 180 4600*2150*2480 ≤10000
VC730M 135-200 175-340 220
VC730H 160-243 211-410 264
VC733L 1455-1934 55 165-248 215-415 264 5500*2563*3178 ≤14020
VC733M 192-286 285-532 320
VC733H 238-350 325-585 400
VC743L 1132-1504 60 230-346 309-577 400 5850*2740*3031 ≤21040
VC743M 246-373 335-630 440
VC743H 281-405 366-683 500
VC766L 1132-1504 60 362-545 486-909 2*315 5850*2740*3050 ≤21840
VC766M 397-602 540-1016 2*355
VC788L 517-597 65 460-692 618-1154 2*400 6000*3040*3456 ≤23220
VC788M 560-848 761-1432 2*500
VC799L 517-597 65 644-967 865-1615 2*560 6000*3122*3625 ≤24980
VC799M 704-1068 960-1804 2*630

Technical Data of VCU7(H) Series Vertical Shaft Impact Crusher:

Model Rotation Speed of Impeller (r/min) Max Feed Size (mm) Throughput (t/h) (Full feeding center / center plus waterfall feeding) Motor Power (kw) Overall Dimensions (mm) Weight(motor not included) (kg)
VCU726L 1881-2499 55 86-143 108-211 110 3600*1969*2200 ≤6950
VCU726M 98-176 124-253 132
VCU726H 132-210 143-300 160
VCU730L 1630-2166 65 150-212 162-310 180 4600*2150*2482 ≤9910
VCU730M 186-280 203-408 220
VCU730H 220-340 245-480 264
VCU733L 1455-1934 80 230-338 255-497 264 5500*2563*3178 ≤13820
VCU733M 268-398 296-562 320
VCU733H 327-485 373-696 400
VCU743L 1132-1504 100 305-467 362-678 400 5850*2740*3031 ≤21240
VCU743M 335-506 379-746 440
VCU743H 375-540 439-800 500



VC7 series sand maker machine.pdf
