Customized Color Mining Crushing Machine 50-1200t/H Simple Structure

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	HC128, HC139, HC239, HC255, HC359, HC459, HC579, HC679, HC779, HC798, HC898, HC8118

Detail Information
Capacity(t/h):	50-1200t/h	Application:	Mining, Metallurgy, Construction, Highway, Railroad, Water Conservancy, Etc.
Max Feeding Size:	300mm-1600mm	Spare Parts:	Will Supply Any Time
Color:	Customized	Warranty:	1 YEAR
High Light:	mining rock crusher,mining crusher machine

Product Description

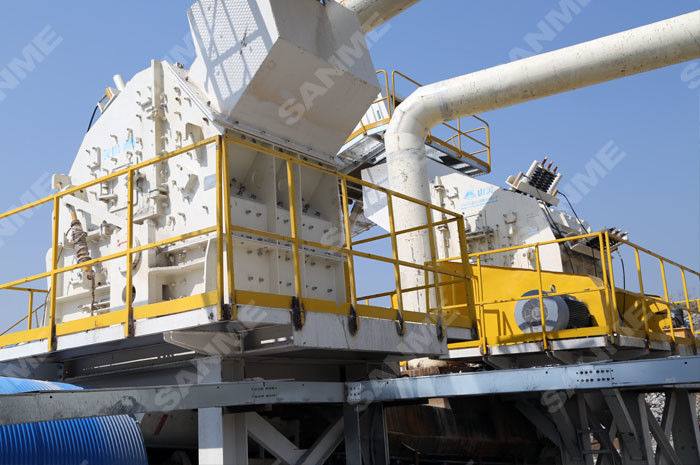

Customized Color Mining Crushing Machine 50-1200t/H Simple Structure

Product Usage of HC Series Impact Crushers:

HC Series Impact Crushers can crush kinds of soft and medium-hard ore, for coarse, medium and fine crushing, in primary and secondary crushing process. The series can be widely used in mining, construction, chemical, cement, metallurgical industries, etc.

Features and technology advantages of HC Series Impact Crushers:

High-quality plates and wear parts to reduce abrade and improve the production efficiency of various conditions; advanced processing technology is the basis of equipment performance.

Strong product commonality can reduce cost. Two-cavity impact crusher can becomes three-cavity machine by adding grinding racks, and no need to change other parts.

Heavy type rotor, finite element endurance analysis, optimized design, reasonable structure and enhancing moment of inertia lead to bigger crushing ratio and better abrasion resistance.

Static and dynamic balancing test for the welding rotor should be done before assembling. To make sure the rotor has a smoothly running and long working life.

Main shaft is finished by quality forging, adopts keyless design and world advanced cover tightening connection to ensure the reliable working and make the maintenance easier.

Unique locking device for hammers makes the tightening moment of force more safe and bigger. And the replacement of hammers can be more simple and convenient.

Standard design for liners increase the interchangeability, decrease the repertory and variety of liners.

Simple but practical locking device lock the shell 1 and shell 2 together. This device has a easy operation and saves locking time.

Unique hydraulic device design is convenient for opening the fame racks to replace wear parts and adjust the discharge size.

Simple structure for impact racks and grinding racks. Easy operation, long working life, convenient maintenance and low cost

Technical Data of HC Series Impact Crushers:

Model	Max Feed Size(mm)	Throughput(t/h)	Motor Power(kw)	Overall Dimension(L×W×H)(mm) ( the biggest size )	Weight(Motor not included)(t)
HC128	300	40-70	37-55	311516002932	11.8
HC139	500	50-80	55-75	306020482935	14.6
HC239	500	100-180	110-132	309520482970	14.7
HC255	500	100-290	132-160	309523982970	17.4
HC359Ⅱ	700	180-350	200-250	341526663127	22.2
HC459	750	220-450	250-315	371730203301	27
HC579	800	250-550	400-500	355235473231	36.2
HC679	1000	400-700	560-630	401940643652	53.2
HC779	1300	500-850	630-800	478543384849	79
HC798	1300	750-1100	800-1250	482548384849	90.8
HC898	1500	1000-1500	1000-1600	538254455454	112.8
HC8118	1600	1400-1900	1400-2000	538259455454	135.5
HC8138	1600	1400-2500	1600-2100	534865275454	158.8

Technical Data of HSI Series Impact Crushers:

Model	Max Feed Size(mm)	Throughput(t/h)	Motor Power(kw)	Overall Dimension(L×W×H)(mm) ( the biggest size )	Weight(Motor not included)(t)
HSI379	350	240-460	250-280	327135272730	23.23
HSI498	400	275-560	280-355	375535222833	27.2
HSI5118	450	375-825	500-710	355245472746	36.2
HSI6118	500	600-900	800-900	373352723306	56.2
HSI7138	500	875-1490	900-1250	478558384120	78
