Customized Color Mining Crushing Machine Stable Operation Flexible Adjustment

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	SMS1000, SMS2000, SMS3000, SMS4000, SMS5000, SMS8000

Detail Information
Capacity(t/h):	40-1220	Max Feeding:	20-355mm
Application:	Mining, Construction, Mining , Construstion	Warranty:	1 YEAR
Color:	Customized	Motor:	AC Motor
High Light:	mining jaw crusher,mining crusher machine

Product Description

Customized Color Mining Crushing Machine Stable Operation Flexible Adjustment

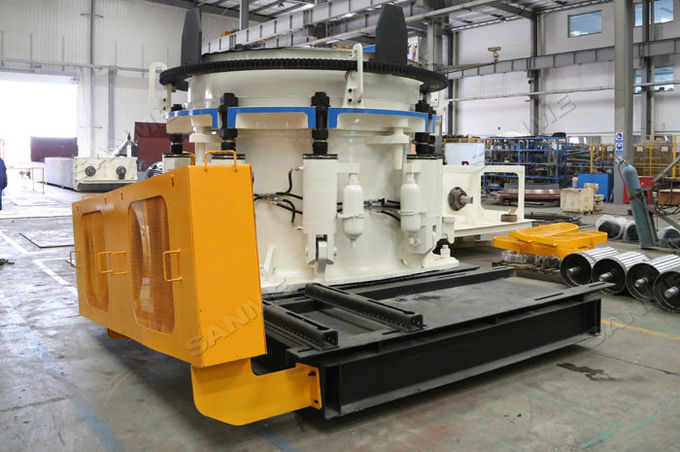

Brief Introduction of Hydraulic Cone Crusher

Hydraulic Cone Crusher is a type of world-class and high-efficient cone crusher based on the newest technology. It is the newest generation of cone crusher replacing the spring cone crusher in mining and construction industry, meanwhile, it is the ideal equipment of large stone-materials industry and mining crushing.

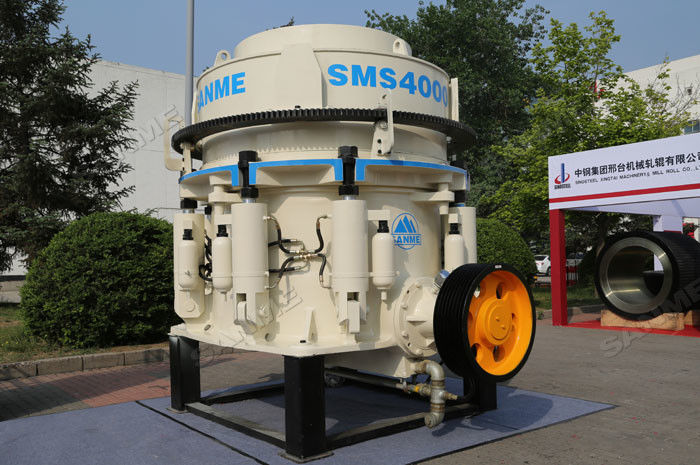

Features of SMS Series Fully Hydraulic Cone Crushers:

The new series cone crusher adopts the international advanced technology, and with superior performance.

The design of fixed shaft and the optimized crushing cavity improve the crushing capacity wholly.

The composition of product size is more stable, and the shape is better.

The full hydraulic standard configuration, simple operation, flexible adjustment.

The independent single- cylinder design makes the system performance stable.

The new integrated base simplify the installation steps.

Improve the shape structure, setting the function and aesthetics in one.

Working principle of SMS Series Fully Hydraulic Cone Crushers:

SMS series fully hydraulic cone crusher is consist of main frame, drive shaft, eccentric, socket liner, crushing body, adjusting device, adjusting sleeve, lubrication system and hydraulic system.

When the crusher working, the motor drives the eccentric rotating through the drive shaft and a pair of bevel gear, cone axis does rotary pendulum movement under the force of eccentric sleeve , which makes the mantle surface sometimes near the concave, sometimes far from the concave, so that the ore in the crushing cavity is continually squeezed and being broken.

The material enter into the crusher from the upper feed opening, by crushing can be discharged from the bottom discharge opening.

Technical Date of SMS Series Fully Hydraulic Cone Crushers:

Model	Max Feed Size (mm)	Discharge Range (mm)	Motor Power (kw)	Capacity (t/h) —— open circuit, closed discharge (mm)												Weight (t)
Model	Max Feed Size (mm)	Discharge Range (mm)	Motor Power (kw)	6	9	13	16	19	22	26	32	38	45	51	63	Weight (t)
SMS1000EC	150	22~32	90						95	105	110
SMS1000C	107	13~26				65	78	85	95	105
SMS1000M	76	10~22			53	65	78	85	95
SMS1000F	45	9~19			53	65	78	85
SMS1000EF	20	6~16		40	53	65	78
SMS2000C	185	22~38	160						170	185	200	225				17.5
SMS2000M	135	16~32					118	140	170	185	200					17.5
SMS2000F	95	13~26				95	118	140	170	185						17.5
SMS2000DC	76	10~22	160		78	95	115	125	155							17.5
SMS2000DM	54	9~19			78	95	115	125								17.5
SMS2000DF	25	6~16		60	78	95	115									17.5
SMS3000EC	235	26~51	160-220							245	270	320	375	400		25
SMS3000C	211	22~45							230	245	270	320	375			25
SMS3000M	150	16~38					155	175	230	245	270	320				25
SMS3000F	107	13~32				110	155	175	230	245	270					25
SMS3000DC	78	10~22	160-220		105	130	160	165	210							25
SMS3000DM	53	9~19			105	130	160	165								25
SMS3000DF	25	6~16		90	105	130	160									25
SMS4000EC	299	32~51	200-315								365	420	480	520		33.5
SMS4000C	235	26~51								315	365	420	480	520		33.5
SMS4000M	199	22~45							266	315	365	420	480			33.5
SMS4000F	135	16~38					198	210	266	315	365	420				33.5
SMS4000DC	95	13~26	200-315			180	205	235	265	290						33.5
SMS4000DM	76	10~22			145	180	205	235	265							33.5
SMS4000DF	45	6~19		120	145	180	205	235								33.5
SMS5000EC	335	32~51	315-400								460	560	615	715		49
SMS5000C	275	26~51								390	460	560	615	715		49
SMS5000M	210	22~45							340	390	460	560	615			49
SMS5000F	150	16~38					285	305	340	390	460	560				49
SMS5000DC	102	13~26	315-400			230	280	340	375	410						49
SMS5000DM	76	10~22			175	230	280	340	375							49
SMS5000DF	45	6~19		145	175	230	280	340								49
SMS8000EC	355	32~63	600								720	800	900	1028	1220
SMS8000C	305	32~51									720	800	900	1028
SMS8000M	260	26~45								620	720	800	900
SMS8000F	215	22~38						480	520	620	720	800
SMS8000DC	155	13~26	600			380	455	515	535	585
SMS8000DM	92	10~22			310	380	455	515	535
SMS8000DF	45	6~19		240	310	380	455	515
