Hydraulic Mining Crushing Machine Higher Capacity Low Noise For Fine Crushing

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	SMG100, SMG200,SMG300, SMG500, SMG700, SMG800

Detail Information
Capacity(t/h):	30-1566	Max Feeding:	35-450mm
Application:	Mining, Metallurgy, Construction, Highway, Railroad, And Water Conservancy, Etc.	Motor Type:	AC Motor
Dimension(LWH):	According To Different Models	Warranty:	1 YEAR
High Light:	mining jaw crusher,mining rock crusher

Product Description

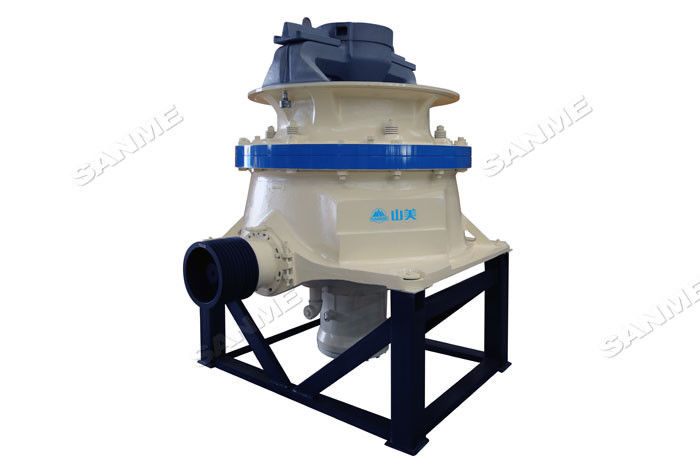

Hydraulic Mining Crushing Machine Higher Capacity Low noise For Fine Crushing

Application Range of Hydraulic Cone Crusher

Cone Crusher is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgy and so on.

Features of SMG Series Cone Crushers:

1. Optimized cavity, higher capacity,better quality

SMG series hydraulic cone crusher is designed for optional variety of cavities. By selecting suitable cavities and eccentricity, it ensures the producing demand of customer in maximum and realizes high capacity.

2. Resistant wear part consumption and low operation cost

The discharging open can be adjusted timely and conveniently with hydraulic adjusting design, which realizes full load operation, lowers wear parts consumption and reduces operating cost.

3. Easy cavities exchange

Due to the same body structure, we can get different crushing cavity by changing liner plate to fulfill the various processing for coarse and fine crushing.

4. Advanced hydraulic technology offers easy operation and maintenance

Due to adopting advanced hydraulic technology, overload protection can effectively be realized, which simplify the structure of crusher and reduces its weight. All maintenance and inspection can be fulfilled on the top of crusher, which ensures easy maintenance.

5. Large feeding opening design

Large feeding opening design is adopted by S type SMG series cone crusher to provide good combination with primary jaw crusher, which greatly improves the crushing capacity. While processing gravels, it can replace jaw crusher and be used as primary crusher.

Working principle of SMG Series Single-cylinder Hydraulic Cone Crushers:

The crushing structure of SMG series single-cylinder hydraulic cone crusher makes the crusher adjustment conveniently, and can adjust the discharge opening freely and simply. The intelligenceauto- control system can keep the crusher at the best work situation, and realizes automatic compensation function between the plate of inner and outer awls.We can set and adjust the discharge opening exactly through the operation panel, also can fulfill the wearing capacity of wear part by several buttons on the control panel. Meanwhile, by adopting the single-cylinder structure, the whole crusher body is compact and greatly reduces the channel for oiling and adjustment structure outside.

Technical Data of SMG Series Secondary Cone Crushers

Model	Max Feeding Size(mm)	Moter power(kw)	Capacities(t/h)	Total weight(kg)
SMG100S	240	90	70-165	7500
SMG200S	360	160	105-330	12000
SMG300S	450	250	215-586	22500
SMG500S	500	315	290-860	36300

Technical Data of SMG Series Tertiary Cone Crushers

Model	Max Feeding Size(mm)	Moter power(kw)	Capacities(t/h)	Total weight(kg)
SMG100	150	90	25-120	5700
SMG200	200	160	63-215	9500
SMG300	215	250	95-396	17500
SMG500	275	315	175-638	28000
SMG700	300	520	350-1502	53000
SMG800	370	600	241-2185	75000

Note:Capacity is the total production tons of open circuit when the material bulk density to be crushed is 1.6t/m3. Production capacity will be affected by physics character of material and feeding method, feeding size and material composition, and so on. Hydraulic Mining Crushing Machine Higher Capacity Low noise For Fine Crushing 0
