High Capacity Mining Crushing Machine 75-400kw Smoothly Running Simple Structure

Product Description

High Capacity Mining Crushing Machine 75-400kw Smoothly Running Simple Structure

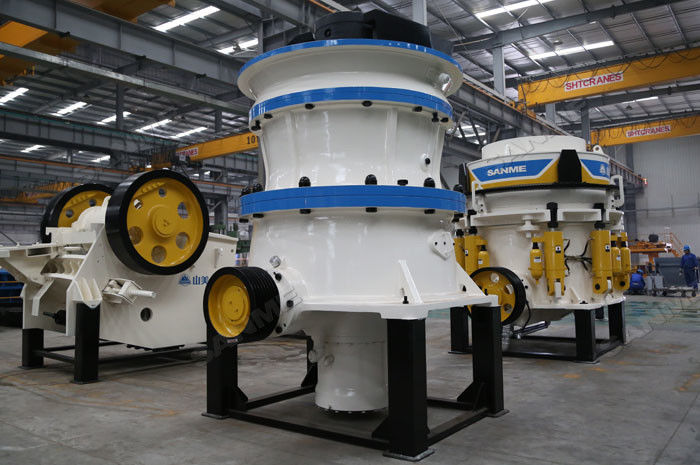

SMG Series Cone Crushers are advanced technology of cone crusher in the world, not only provides the features of high reliability, but also with the features of high crushing efficiency, low operation cost, good shape of the end products.

Features of SMG Series Cone Crushers:

Optimized cavity, higher capacity,better quality
SMG series hydraulic cone crusher is designed for optional variety of cavities. By selecting suitable cavities and eccentricity, it ensures the producing demand of customer in maximum and realizes high capacity.

Resistant wear part consumption and low operation cost
The discharging open can be adjusted timely and conveniently with hydraulic adjusting design, which realizes full load operation, lowers wear parts consumption and reduces operating cost.

Easy cavities exchange
Due to the same body structure, we can get different crushing cavity by changing liner plate to fulfill the various processing for coarse and fine crushing.

Advanced hydraulic technology offers easy operation and maintenance
Due to adopting advanced hydraulic technology, overload protection can effectively be realized, which simplify the structure of crusher and reduces its weight. All maintenance and inspection can be fulfilled on the top of crusher, which ensures easy maintenance.

Large feeding opening design
Large feeding opening design is adopted by S type SMG series cone crusher to provide good combination with primary jaw crusher, which greatly improves the crushing capacity. While processing gravels, it can replace jaw crusher and be used as primary crusher.

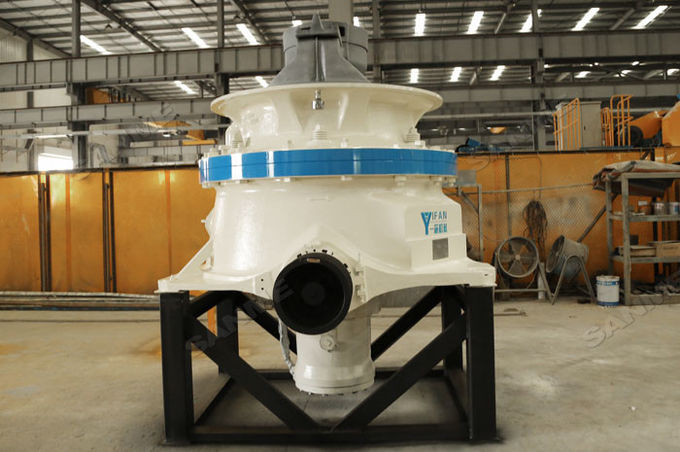

​Working principle of SMG Series Single-cylinder Hydraulic Cone Crushers:

The crushing structure of SMG series single-cylinder hydraulic cone crusher makes the crusher adjustment conveniently, and can adjust the discharge opening freely and simply. The intelligenceauto- control system can keep the crusher at the best work situation, and realizes automatic compensation function between the plate of inner and outer awls.We can set and adjust the discharge opening exactly through the operation panel, also can fulfill the wearing capacity of wear part by several buttons on the control panel. Meanwhile, by adopting the single-cylinder structure, the whole crusher body is compact and greatly reduces the channel for oiling and adjustment structure outside.

Technical Data of SMG Series Secondary Cone Crushers

Technical Data of SMG Series Tertiary Cone Crushers

Note:Capacity is the total production tons of open circuit when the material bulk density to be crushed is 1.6t/m3. Production capacity will be affected by physics character of material and feeding method, feeding size and material composition, and so on.

SMG series cone crusher.pdf
