Basalt River Gravel Limestone Stone Jaw Crusher 500tph

Product Description

limestone crushing and screening production line

The Stone Crushing Plant mainly consists of Vibrating Feeder, Jaw Crusher, Cone Crusher or Impact Crusher, Vibrating Screen, Belt Conveyor and Control System, etc. It is completely capable to crush and screen limestone, marble, granite, basalt, river gravel and other hard stone materials, and produce sand & gravels with various granularities for construction and building industry. We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers’ requirements on stone specifications, output, application, etc.

Features and Advantages of the Stone Crushing Plant

1.High degree of automatic operation; the entire production line requires almost no manual operation except for machine starting and stopping, routine maintenance.

2. High productivity, low investment, and good appreciation.

3. Regular end product granularity, good grain shape, and low powder output.

4. Adopting high advanced control system to ensure security and reliable operation of the entire production line.

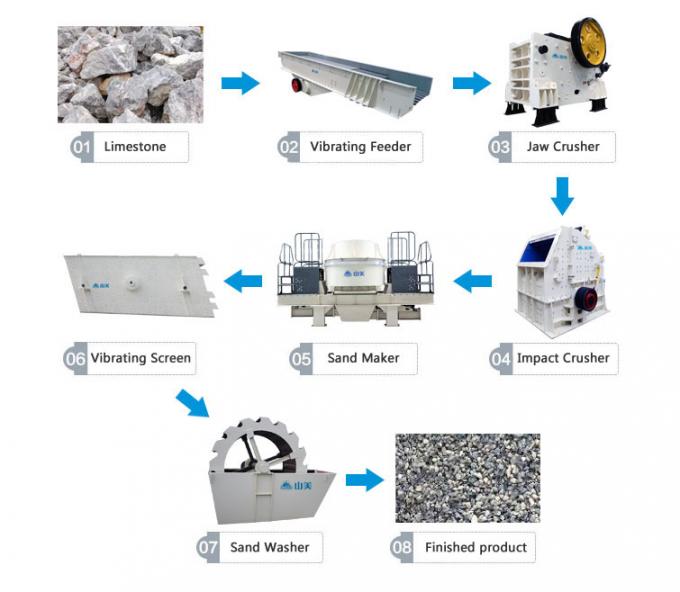

BASIC PROCESS OF LIMESTONE SAND MAKING PLANT

The Limestone sand making process is divided into four stages: coarse crushing, medium fine crushing, sand making and screening.

The first stage: coarse crushing

The pebbles blasted from the mountain is fed uniformly by the vibrating feeder through the silo and transported to the jaw crusher for coarse crushing.

The second stage: medium broken

The coarsely crushed materials are screened by vibrating screen and then conveyed by belt conveyor to cone crusher for medium crushing. The crushed stones are conveyed to the vibrating screen through a belt conveyor to sieve out different specifications of stones. The stones that meet the requirements of the customer’s particle size are conveyed to the finished product pile through the belt conveyor. The cone crusher crushes again, forming a closed circuit cycle.

The third stage: sand making

The crushed material is larger than the size of the two-layer screen, and the stone is conveyed to the sand maker machine through the belt conveyor for fine crushing and shaping.

The fourth stage: screening

The finely crushed and reshaped materials are screened by circular vibrating screen for coarse sand, medium sand and fine sand.
