70t/H Steel Slag Stone Impact Crusher For Construction Work

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	PP128,139,239,255,359,459

Detail Information
Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Work	Type:	Impact Crusher
Motor Type:	AC Motor	Spare Parts Supply:	Lifelong Time
Installation:	Engineer Guide	After Sale Service:	Maintenance
High Light:	Steel Slag Stone Impact Crusher,70t/H Stone Impact Crusher,4400mm Height Stone Impact Crusher

Product Description

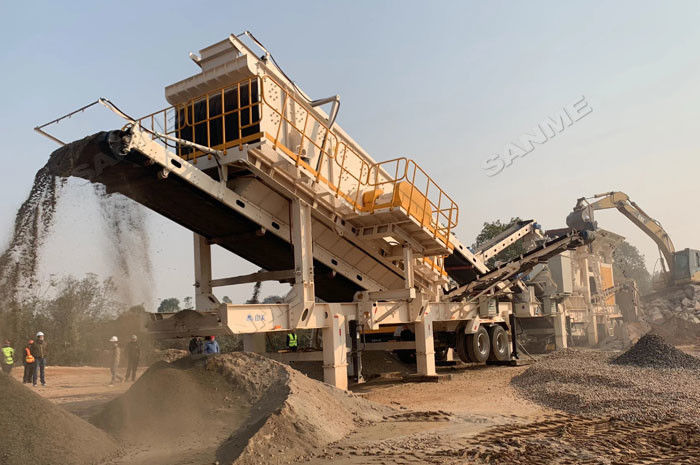

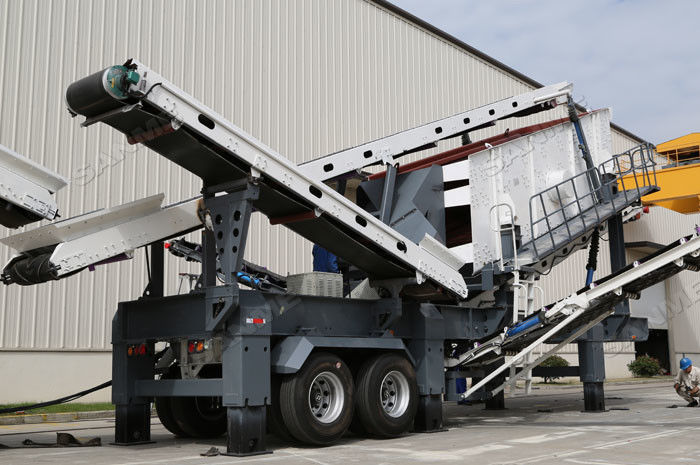

FEATURES OF PP SERIES PORTABLE IMPACT CRUSHER

High-performance HC Series impact crusher.

Feeder with car, Vibrating Screen, Belt Conveyor.

Pulling the steering shaft to facilitate road transport.

In-car installation support, equipment site installation fast and convenient.

Supporting the installation of the motor and control box integration.

Mobility, structure is compact, easy to use.

Stable performance, easy maintenance; flexible configuration.

Saving cost, and reducing costs.

WORKING PRINCIPLE OF PP SERIES PORTABLE IMPACT CRUSHER

Materials by the feeder evenly delivered to the crusher, impact crusher is initial crushing, constitute a closed system circular with vibrating screen, materials achieve to cycle broken, finished materials go to output by the conveyor, and go through continuous crushing operations. According to actual needs of production, we can remove the circular vibrating screen from impact mobile crushing plant, achieve directly to preliminary broken, easy to operate with other crushing equipment, flexible to use.

PP Series Portable Impact Crushing Plants (Primary):

Model	PP128HC	PP139HC	PP239HC	PP255HC	PP359HC	PP459HC
Transport dimensions
Length(mm)	10850	10800	11030	11490	13670	13670
Width(mm)	2780	2780	2780	2880	3110	3110
Height(mm)	4400	4400	4370	4460	4780	4890
Weight(kg)	27000	30000	37700	48400	60100	63500
Axle weight(kg)	18500	19000	25600	30920	3800	39500
King pin weight(kg)	8500	11000	12100	17520	21300	24000
Impact Crusher
Model	HC128	HC139	HC239	HC255	HC359	HC459
Feed opening(mm)	300	400	500	500	600	750
Capacity(t/h)	40-70	50-80	70-120	130-180	160-250	220-450
Feeder
Model	GZT0724	GZT0724	GZT0932	ZSW380*95	ZSW490*110	ZSW490*110
Feed hopper volume(m3)	3.2	3.2	7.6	9	10	10
Belt Conveyor
Model	B500*7.5	B800*7	B800*7.5	B1000*8	B1000*8	B1200*8.3
Permanent Magnetic Separator
Magnetic separator	optional	optional	optional	optional	optional	optional

PP Series Portable Impact Crushers (Secondary)

Model	PP139HCS	PP239HCS	PP255HCS	PP359HCS
Transport dimensions
Length(mm)	10800	13800	14700	14500
Width(mm)	2480	2743	2900	3000
Height(mm)	4170	4200	4420	4200
Weight(kg)	28800	35000	40300	47000
Axle weight(kg)	15900	24500	26000	32400
King pin weight(kg)	11300	10500	14300	14600
Impact Crusher
Model	HC139	HC239	HC255	HC359
Feed opening(mm)	1100×640	1100×740	1450×760	1550*1080
Capacity(t/h)	50-80	70-120	130-180	160-250
Belt Conveyor
Model	B650*6.2	B800*7.4	B800*8.2	B1000*8.2
Screen
Model	3YK1235	3YK1548	3YK1860	3YK2160
