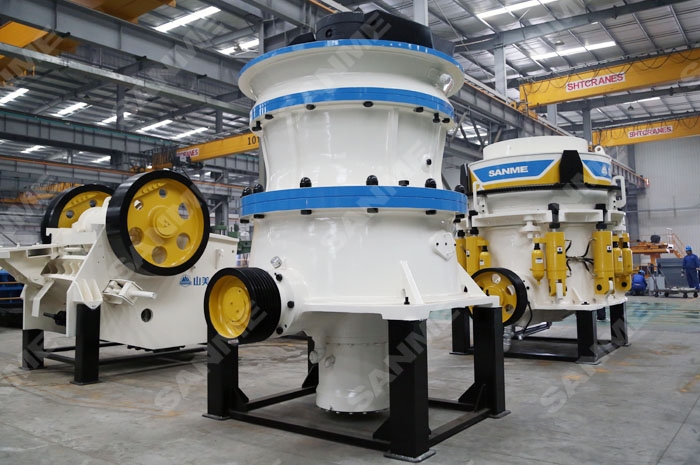

what is cone crusher machines？

Cone crusher, abbreviated as cone crusher, is a crushing machinery suitable for raw materials in metallurgy, construction, road construction, chemistry, and silicate industries. It is also widely used in many sectors such as mining, smelting, building materials, highways, railways, water conservancy, and chemical industry. The following is a detailed introduction to the cone crusher:

1、Structure and Composition

The main structure of a cone crusher includes a frame, horizontal shaft, dynamic cone, balance wheel, eccentric sleeve, upper crushing wall (fixed cone), lower crushing wall (dynamic cone), hydraulic coupling, lubrication system, and hydraulic system. These components work together to enable the cone crusher to efficiently complete crushing operations.

2、Working principle

The working principle of the cone crusher is to drive the transmission device through an electric motor to rotate the eccentric sleeve. The moving cone rotates and swings under the pressure of the eccentric shaft sleeve, thereby approaching or leaving the stationary cone (i.e. the upper crushing wall). When the moving cone approaches the stationary cone, the ore is crushed by compression, bending, and grinding in the crushing chamber; When the moving cone leaves, the broken ore is discharged from the bottom of the cone under its own gravity. This process is repeated continuously until all the ore is crushed and discharged.

3、Classification and Model

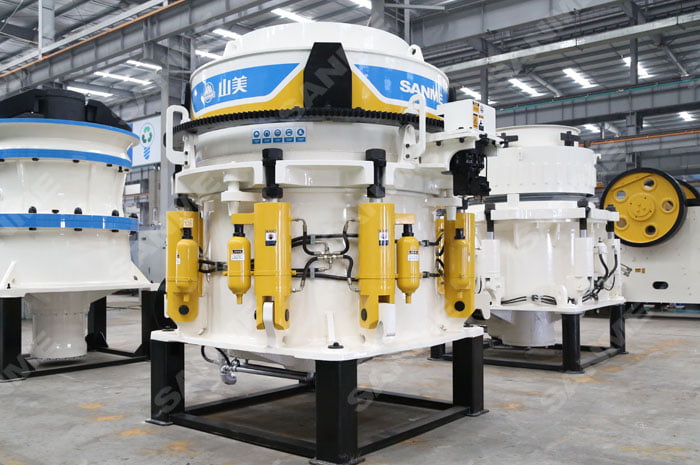

Cone crushers can be classified into various models based on their crushing principles and the size of product particles. According to their types, they mainly include spring cone crushers, rolling mill cone crushers, hydraulic cone crushers, and composite cone crushers. According to the model classification, there are ordinary PY cone crushers, Simmons cone crushers, composite cone crushers, standard hydraulic cone crushers, single cylinder hydraulic cone crushers, and multi cylinder hydraulic cone crushers.

4、Characteristics and advantages

Large crushing ratio: The cone crusher can process larger pieces of material and crush them into smaller particles.

High efficiency: Due to the reasonable design of the crushing chamber, the crushing process is more efficient.

Low energy consumption: Compared to other types of crushers, cone crushers have lower energy consumption.

Uniform product particle size: The particle size distribution of the crushed material is uniform, meeting production needs.

Strong adaptability: The cone crusher is suitable for crushing various ores and rocks.

5、Application Fields

Cone crushers are mainly used for medium and fine crushing various ores and rocks, such as iron ore, copper ore, aluminum ore, limestone, etc. It has a wide range of applications in industries such as mining, smelting, construction, highways, and building materials. In addition, cone crushers can also be used to crush materials such as cement clinker and quartz stone, producing various uniformly sized finished products.

6、Maintenance and upkeep

In order to ensure the normal operation and prolong the service life of the cone crusher, regular maintenance and upkeep are necessary. This includes checking whether the various components of the crusher are intact, whether the lubrication system is unobstructed, and whether the hydraulic system pressure is normal. At the same time, it is necessary to regularly clean and replace worn parts of the crusher.

In summary, cone crusher is an efficient, energy-saving, and adaptable crushing equipment that plays an important role in multiple industries.
