Everything You Need to Know About Mobile Crushers

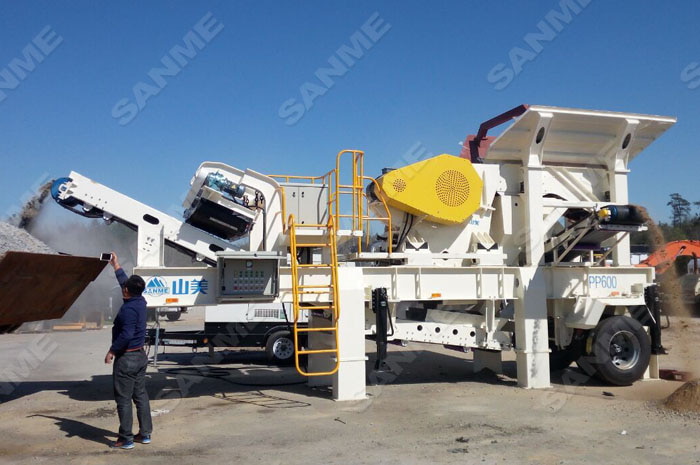

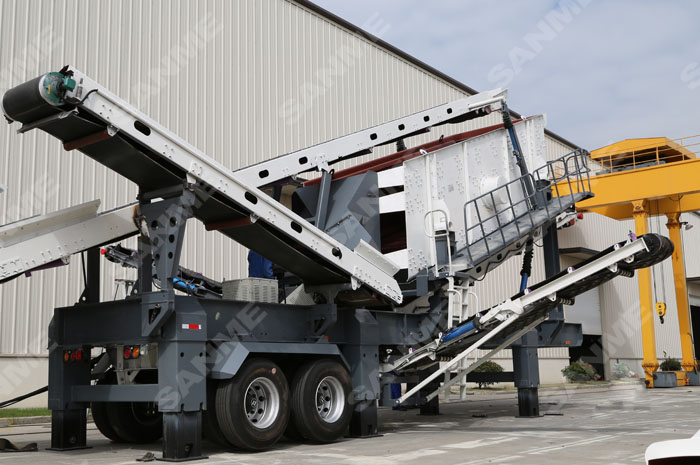

Mobile crushing plant is a mechanical equipment that integrates feeding, crushing, and conveying. It is mainly used for multi-stage crushing of large materials and screening according to certain discharge specifications. It mainly consists of the following main parts:

Feeding system: including a feeder, its function is to feed raw materials to various stages of crushers and screening machines, reduce the impact of the feeding process on the working device of the crusher, achieve uniform feeding, and improve the working conditions of the crusher.

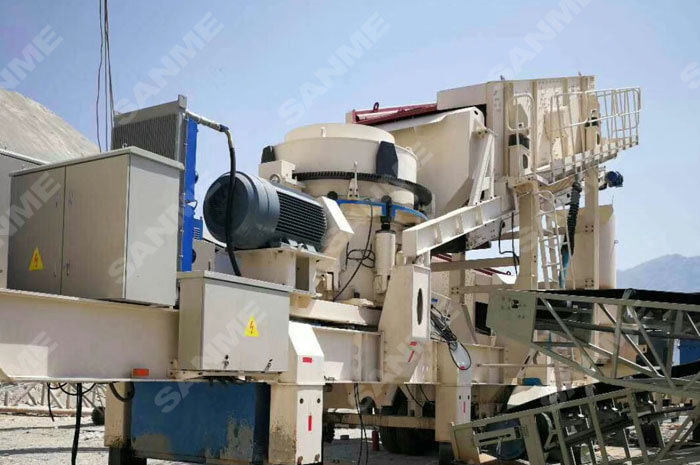

Crushing system: This is the core part of the mobile crushing station, mainly composed of crushers. The crusher equipment system can crush large pieces of material into finished products of the required size, and ensure that the particle size distribution of the crushed material is uniform, meeting production requirements. The type of crusher can be selected according to production needs, such as jaw crusher, cone crusher, etc.

Screening system: In order to meet the requirements of material particle size sorting, the mobile crushing station is equipped with a vibrating screen. The vibrating screen is located behind the crusher and is responsible for screening the crushed materials, separating materials with different particle sizes to meet different usage needs.

Conveyor system: including conveyor belts, responsible for continuously conveying crushed and screened materials to the next process or storage location. The conveyor belt can adjust the conveying speed and angle as needed to ensure smooth material transportation.

Power control box: provides power supply for the entire equipment and is responsible for controlling the operation of various electric devices.

Mobile system: The mobile crushing station has the ability to move, usually composed of tracked or tire type walking mechanisms, allowing it to move and operate flexibly in different fields.

Other auxiliary equipment, such as lubrication equipment, is crucial for the normal operation of mechanical equipment; The control system, as the intelligent control center of the mobile crushing station, can monitor and control the operating status of various modules, and perform intelligent adjustment and optimization.

These parts work together to enable mobile crushing stations to efficiently complete the tasks of material crushing, screening, and transportation, especially suitable for situations that require frequent changes in work locations, such as mines, construction sites, etc.

What are the characteristics and advantages of mobile crushing stations

As a mobile device that integrates functions such as crushing, screening, and conveying, mobile crushing stations have many characteristics and advantages, mainly as follows:

Flexibility and maneuverability: The mobile crushing station adopts a tracked or tire type walking mechanism, which can quickly move and locate on different sites, adapting to various complex terrains and working environments. This makes it very suitable for use in mining, construction sites, and other situations that require frequent changes in work locations.

Integrated design: The mobile crushing station integrates crushing, screening, conveying and other processes into one equipment, reducing material transportation and transfer links and improving operational efficiency. Meanwhile, the integrated design also simplifies the installation and debugging process of the equipment, reducing usage costs.

Efficient crushing and screening: The mobile crushing station is equipped with high-performance crushers and screening equipment, which can quickly crush large blocks of materials into finished products with the required particle size and perform effective screening. This can not only improve crushing efficiency, but also ensure the quality of finished materials.

Energy saving and environmental protection: The mobile crushing station adopts advanced crushing technology and energy-saving design, which can effectively reduce energy consumption and emissions. At the same time, the noise and dust generated by the equipment during the operation process are effectively controlled, meeting environmental protection requirements.

Intelligent control: The mobile crushing station is equipped with an intelligent control system that can monitor the operating status and performance parameters of the equipment in real time, and automatically adjust and optimize them. This can not only improve the operational stability of the equipment, but also reduce the difficulty of operation and labor costs.

Strong adaptability: The mobile crushing station can adapt to the processing needs of different types and particle sizes of materials. By replacing different crushers and screening equipment, it can achieve crushing and screening operations for different materials.

Suitable for crushing materials

Rocks and ores: Mobile crushing stations can crush various types of rocks and ores, such as limestone, granite, iron ore, gold ore, etc. These materials have a wide range of applications in mining, construction, and road construction.

Concrete: Mobile crushing stations can effectively crush concrete fragments, concrete components, or concrete waste, which are typically used for the production of recycled aggregates.

Construction waste: Mobile crushing stations can process various types of construction waste, such as bricks, tiles, wood, and metals, converting them into recycled materials or for waste disposal.

Glass: It can also break waste glass containers or building glass, and these broken glass can be used for glass recycling or other purposes.

In addition, mobile crushing stations are also suitable for crushing materials such as river pebbles, basalt, coal gangue, quartz sand, cement clinker, etc. These materials are widely used in industries such as mining, construction aggregate production, highway construction, road and bridge construction, and concrete aggregate mixing plants.
